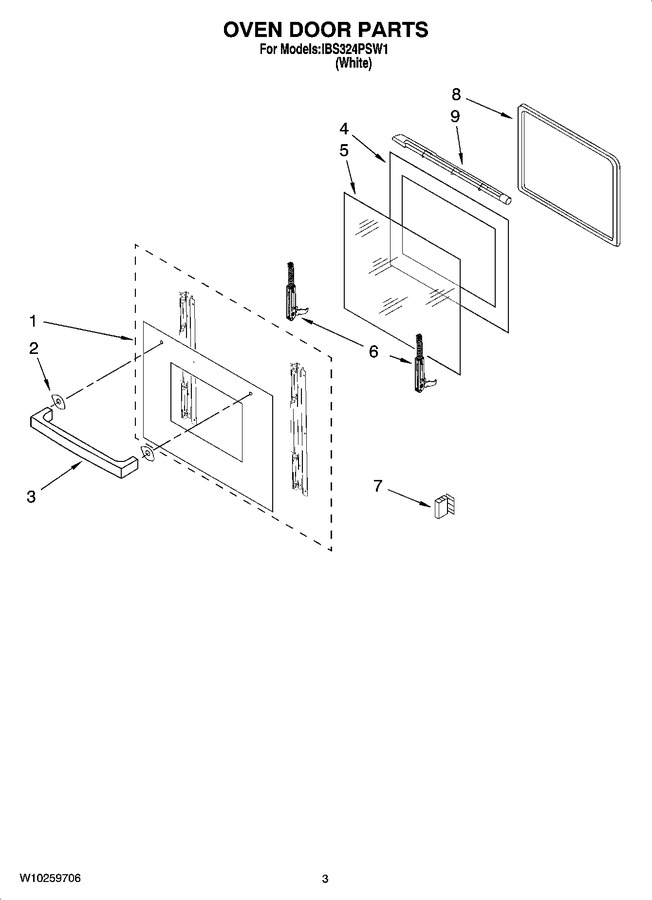

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10260874 | Assy, Door Glass |
|
- | |||||
| 2 | 8186843 | Spacer, Handle |
|
- | |||||
| 3 | 8186842 | Handle, Door |
|
- | |||||
| 4 | W10260704 | Glass, Inner |
|
- | |||||
| 5 | 8186848 | Glass, Inner |
|
- | |||||
| 6 | W10260701 | Hinge, Door |
|
- | |||||
| 7 | W10240561 | Glass, Support |
|
- | |||||
| 8 | 8186849 | Gasket, Door |
|
- | |||||
| 9 | 8186844 | Vent, Exhaust |
|
- |
