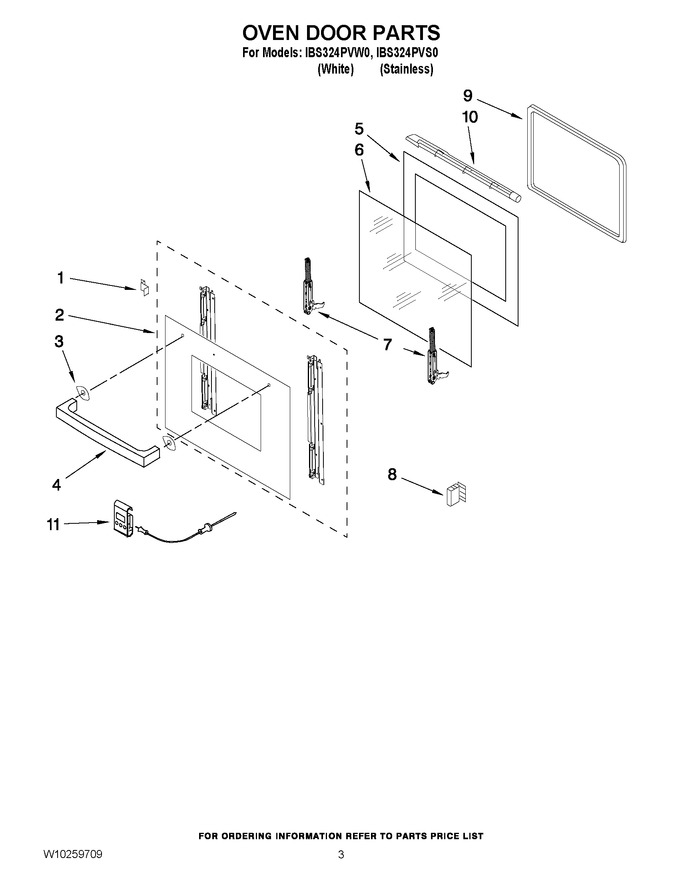

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8186923 | Mtg, Stopper |
|
- | |||||
| 2 | W10240566 | Assy, Door Glass (stainless) |
|
- | |||||
| 2 | W10258991 | Assy, Door Glass (white) |
|
- | |||||
| 3 | W10240564 | Spacer, Handle |
|
$ 7.25 | |||||
| 4 | W10240563 | Handle, Door |
|
- | |||||
| 5 | W10240565 | Glass, Inner |
|
- | |||||
| 6 | 8186848 | Glass, Inner |
|
- | |||||
| 7 | W10240562 | Hinge, Door |
|
$ 33.36 | |||||
| 8 | W10240561 | Glass, Support |
|
- | |||||
| 9 | 8186849 | Gasket, Door |
|
- | |||||
| 10 | 8186844 | Vent, Exhaust |
|
- | |||||
| 11 | W10240570 | Sensor |
|
- |
