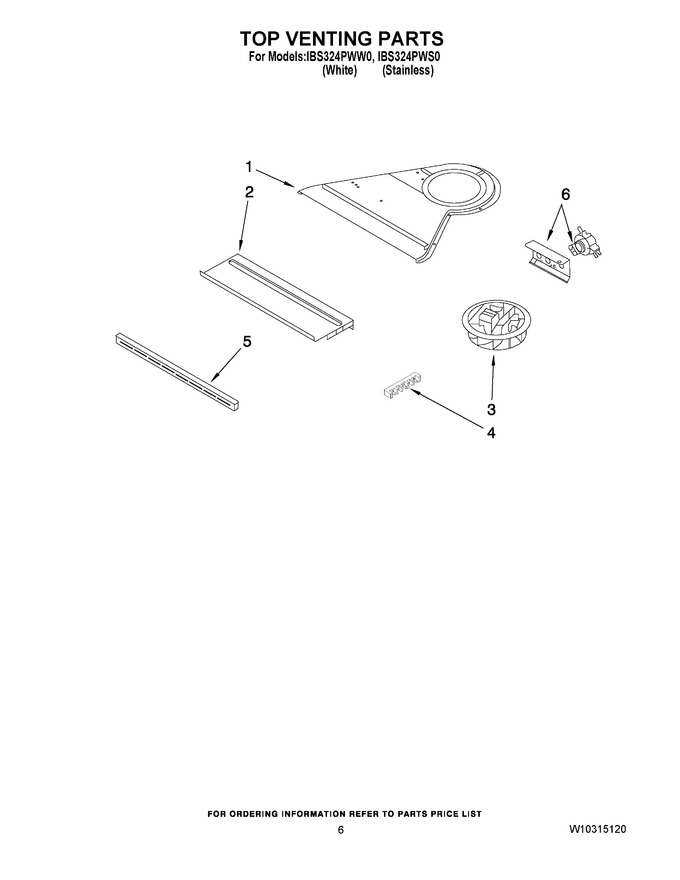

05 - Top Venting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Cover, Top Rear (not Serviced) |
|
- | |||||
| 2 | N/P | Cover Top, Front (not Serviced) |
|
- | |||||
| 3 | W10260713 | Blower, Fan |
|
$ 257.60 | |||||
| 4 | 8186870 | Block, Terminal |
|
$ 35.84 | |||||
| 5 | W10260711 | Vent |
|
- | |||||
| 6 | 8186876 | Temper, Limiter |
|
$ 155.65 |
