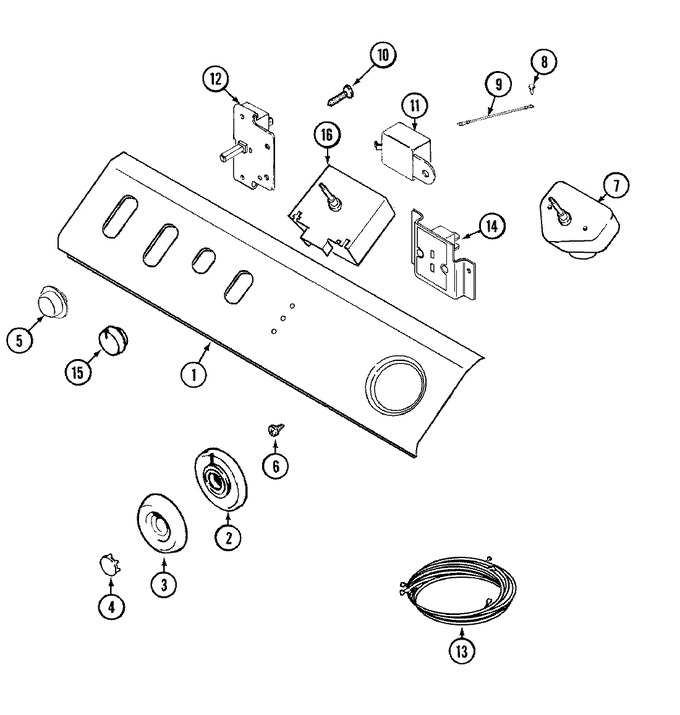

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22001662		Screw	10	Appelez-nous	-
1	33001598		Panel, Control (wht)	10	Appelez-nous	-
2	WP33001621		Skirt, Timer Dial (wht)   (Replaces: 33001621)	10		Immediately	$ 23.18
3	WP22001659		Timer Knob - Grey   (Replaces: 22001659)	10		Immediately	$ 26.38
4	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
5	33001619		Button, Push To Start (wht)	10	Appelez-nous	-
6	WP90767		Screw, Timer   (Replaces: 33001690)	10		Immediately	$ 7.04
7	33001634		Timer	10			$ 154.97
8	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	10			$ 9.79
9	22001654		Wire, Ground	10	Appelez-nous	-
10	WP489128		Screw   (Replaces: 216423)	10			$ 9.79
11	33001623		Buzzer, Non-adjustable	10			$ 55.84
12	33001726		Switch, Push To Start (wht)	10	Appelez-nous	-
13	33001673		Wire Harness, Main	10	Appelez-nous	-
14	33001661		Display, Dryness (wht)	10	Appelez-nous	-
15	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
16	33001656		Switch, Temp (elec)(wht)	10			$ 122.64
17	33001684		Manual, Use & Care (french)	10	Appelez-nous	-
