SELECT A DIAGRAM

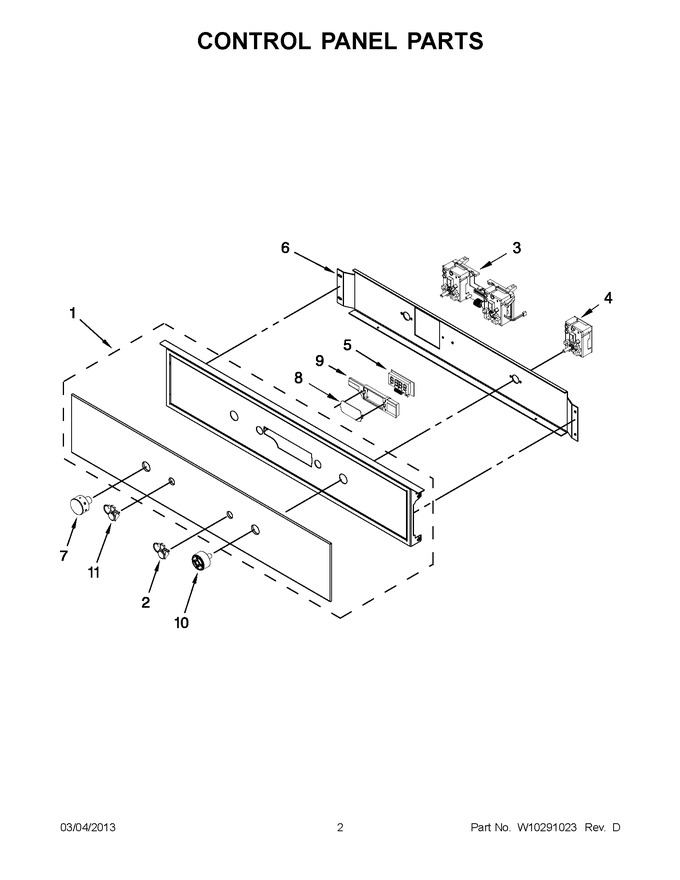

01 - Control Panel Parts


02 - Oven Parts


03 - Top Venting


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10250334		Control Panel (stainless)				$ 233.34
1	W10250336		Control Panel (white)		Appelez-nous	-
2	WPW10158961		Switch, Enter   (Replaces: W10158961)				$ 111.47
3	WPW10158965		Interface, User   (Replaces: W10158965)			Immediately	$ 333.64
4	W10158966		Encoder, Rotary				$ 301.69
5	WPW10158964		Module, Display   (Replaces: W10158964)				$ 283.17
6	W10158967		Bracket, Ui		Appelez-nous	-
7	W10178792		Knob, Control			Immediately	$ 54.28
8	W10194089		Filter, Display				$ 12.13
9	4453000		Bracket, Display		Appelez-nous	-
10	W10158969		Knob, Control				$ 80.60
11	W10158962		Switch, Cancel				$ 54.97

    View Diagram in Separate Window       Print Part List
