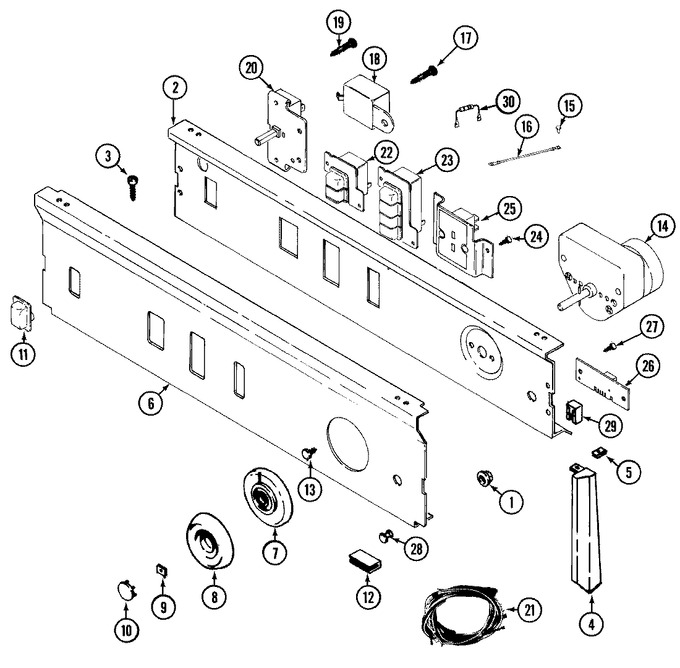

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 214872 | Palnut, End Cap | A0 |
|
- | ||||
| 2 | 33001265 | Plate, Support | A0 |
|
- | ||||
| 3 | 314728 | Screw,ctrl.pnl & End Cap(blk) | A0 |
|
- | ||||
| 4 | 22001288 | End Cap, Ctrl. Pnl. (lt-blk) | A0 |
|
- | ||||
| 4 | 22001290 | End Cap, Ctrl. Pnl. (rt-blk) | A0 |
|
- | ||||
| 5 | 214894 | Fastener, End Cap | A0 |
|
- | ||||
| 6 | 33001094 | Panel, Control (blk) | A0 |
|
- | ||||
| 7 | 33001182 | Skirt, Timer Dial (blk) | A0 |
|
- | ||||
| 8 | 315041 | Knob, Timer | A0 |
|
- | ||||
| 9 | W10155650 | Nut (Replaces: 312273) | A0 |
|
$ 12.03 | ||||
| 10 | 216193 | Cap, Timer Knob (blk) | A0 |
|
- | ||||
| 11 | 33001186 | Button (blk) | A0 |
|
- | ||||
| 12 | 214897 | Pad, Control Panel | A0 |
|
- | ||||
| 13 | WP488234 | Screw, Switches (Replaces: 315317) | A0 |
|
$ 6.07 | ||||
| 14 | 33001035 | Timer | A0 |
|
- | ||||
| 15 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | A0 |
|
$ 9.79 | ||||
| 16 | 204807 | Grnd.wire,supp.plte To Top Cvr | A0 |
|
- | ||||
| 17 | WP488234 | Screw, Switches (Replaces: 315317) | A0 |
|
$ 6.07 | ||||
| 18 | Y308205 | Buzzer | A0 |
|
- | ||||
| 19 | WP488234 | Screw, Switches (Replaces: 315317) | A0 |
|
$ 6.07 | ||||
| 20 | 33001232 | Switch, Push To Start | A0 |
|
- | ||||
| 21 | 33001338 | Wire Harness, Main | A1 |
|
- | ||||
| 21 | 33001135 | Wire Harness, Main | A0 |
|
- | ||||
| 21 | 33001534 | Harness, Wire | 16 |
|
- | ||||
| 22 | 33001219 | Switch, Push Button (2 Positio | A0 |
|
- | ||||
| 23 | 33001213 | Switch, Push Button (4 Positio | A0 |
|
- | ||||
| 24 | WP488234 | Screw, Switches (Replaces: 315317) | A0 |
|
$ 6.07 | ||||
| 25 | 33001046 | Display, Dryness Asy. (blk) | A0 |
|
- | ||||
| 26 | WP33001212 | Board, Control-moisture Sensor (Replaces: 33001212) | A0 |
|
$ 269.69 | ||||
| 27 | WP488234 | Screw, Switches (Replaces: 315317) | A0 |
|
$ 6.07 | ||||
| 28 | WP7730P011-60 | Lens, Indicator Light (Replaces: 22001215) | A0 |
|
$ 5.16 | ||||
| 29 | 33001224 | Light, Indicator | A0 |
|
- | ||||
| 30 | 33001104 | Resistor (med. Temp) | A0 |
|
- | ||||
| 31 | 33001260 | Manual, Use & Care | A0 |
|
- | ||||
| 31 | 16000327 | Guide, Quick Ref. - Maytag | A0 |
|
- |
