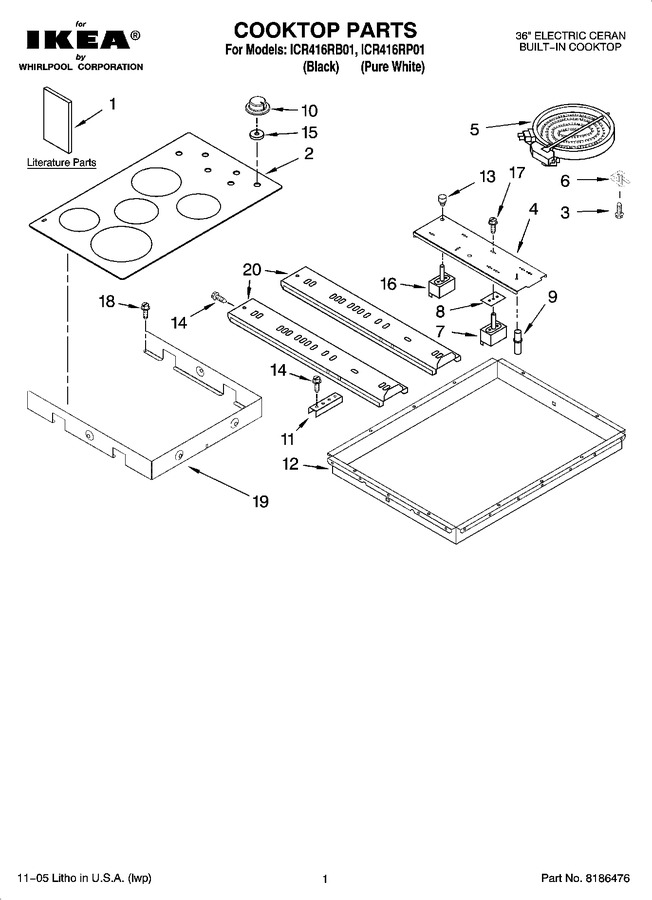

01 - Cooktop Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759861 | Wiring Diagram Safer Cooking Tips |
|
- | |||||
| 1 | 9759087 | Installation Instructions |
|
- | |||||
| 1 | 8286619 | Owners Manual |
|
- | |||||
| 1 | 3191638 | English |
|
- | |||||
| 1 | 9759133 | French |
|
- | |||||
| 2 | 9760280 | Cooktop & Bracket Assembly (pure White) |
|
- | |||||
| 2 | 9760281 | Cooktop & Bracket Assembly (black) |
|
- | |||||
| 3 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 9760682 | Bracket, Switch Mounting |
|
- | |||||
| 4 | 9760290 | Insulation, Bracket |
|
- | |||||
| 5 | W10823696 | Element, Surface (1000/2400w - Lf) (Replaces: 8523692) |
|
Immediately | $ 192.83 | ||||
| 5 | W10823698 | Element, Surface (1800w - Rr) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 5 | W10823699 | Element, Surface (1500w - Rf) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 5 | W10823711 | Element, Surface (1200w - Lr) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 5 | WP8523700 | Element, Surface (100w (warm Elem)) (Replaces: 8523700) |
|
Immediately | $ 159.08 | ||||
| 6 | 9759094 | Spring, Locator (8) |
|
$ 6.34 | |||||
| 7 | WP3191050 | Switch, Infinite (use W/rr Burner) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| 7 | 8285451 | Switch, Infinite (warm Zone) |
|
- | |||||
| 7 | WP3191049 | Switch, Infinite (use W/rf & Lr Burners) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | WP4454541 | Switch, Infinite (use W/lf Burner) (Replaces: 4454541) |
|
$ 149.46 | |||||
| 8 | W10491984 | Seal, Switch Cover (Replaces: 3192439) |
|
$ 10.33 | |||||
| 9 | 3191945 | Light, Indicator |
|
- | |||||
| 10 | 9758786 | Knob, Control (4) (black) |
|
$ 94.91 | |||||
| 10 | 9758785 | Knob, Control (4) (white) |
|
$ 95.14 | |||||
| 11 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 12 | 9760684 | Box, Burner |
|
- | |||||
| 13 | 3191953 | Bumper, Silicone |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Seal, Switch Shaft (4) |
|
$ 45.00 | |||||
| 16 | WP9762441 | Switch, Rotary (accusimer) (Replaces: 9762441) |
|
$ 132.81 | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 18 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 19 | 9761993 | Shield, Heat |
|
- | |||||
| 20 | 3172515 | Mtg. Hardware Kit |
|
- | |||||
| 20 | 8285962 | Rail, Element |
|
- | |||||
| 20 | 3192737 | Seal, Heat |
|
$ 35.16 | |||||
| 20 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 20 | 4455364 | Bracket, Support (6) |
|
$ 82.35 | |||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 9762223 | Harness, Conduit |
|
- | ||||||
| 9762055 | Wiring Harness Surface Unit |
|
- | ||||||
| 3191048 | Cleaner |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 3183956 | Seal, Swtch Cvr |
|
$ 41.81 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | ||||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 6.47 |
