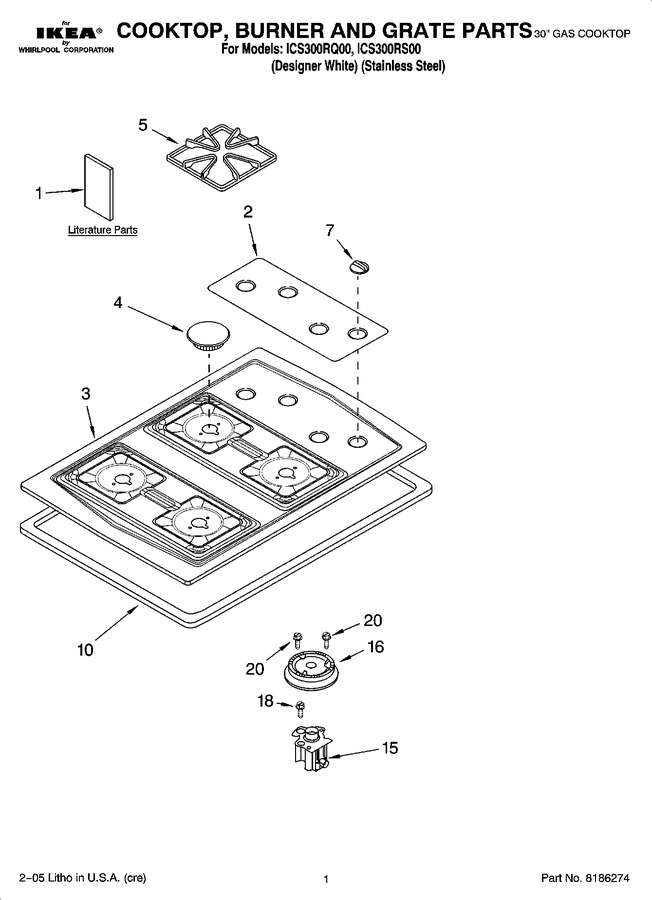

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192098 | Wiring Diagram |
|
- | |||||
| 1 | 4455834 | Installation Instructions |
|
- | |||||
| 1 | 9760040 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | 9759440 | L.p. Conversion Instructions |
|
- | |||||
| 2 | 9759872 | Panel, Control (s.steel) |
|
- | |||||
| 2 | 9759873 | Panel, Control (white) |
|
- | |||||
| 3 | N/A | 12.5k (2) |
|
- | |||||
| 3 | WP3191905 | Gray (Replaces: 3191905) |
|
$ 77.99 | |||||
| 3 | WP3191904 | Cap, Burner 12.5k (rr) Black (Replaces: 3191904) |
|
$ 157.85 | |||||
| 3 | WP3191903 | Gray (Replaces: 3191903) |
|
$ 159.62 | |||||
| 3 | WP3191901 | Cap, Burner (black) (Replaces: 3191901) |
|
$ 106.83 | |||||
| 3 | 3191899 | Gray |
|
$ 31.21 | |||||
| 3 | WP3191898 | Cap, Burner 6k (rf, Lr) (black) (Replaces: 3191898) |
|
$ 60.86 | |||||
| 3 | 8284705 | Cooktop (biscuit) |
|
- | |||||
| 3 | W11230936 | Cooktop (stainless) (Replaces: 3191288) |
|
$ 377.15 | |||||
| 3 | WP3191243 | Cooktop (white) (Replaces: 3191243) |
|
$ 279.93 | |||||
| 5 | 9761231 | Grate (4) (black) |
|
$ 78.62 | |||||
| 5 | 9761232 | Grate (4) (gray) |
|
- | |||||
| 7 | 9758788 | Knob, Control (4) (black) |
|
$ 18.03 | |||||
| 7 | 9758787 | Knob, Control (4) (white) |
|
- | |||||
| 10 | 9760045 | Seal, Foam |
|
$ 236.42 | |||||
| 15 | WPW10128448 | Holder, Orifice (includes 13 & 14) (auxi) (Replaces: 4456621) |
|
Immediately | $ 100.54 | ||||
| 15 | WPW10155785 | Holder, Orifice (includes 13 & 14) (rapid) (Replaces: 4456619) |
|
$ 102.43 | |||||
| 15 | WPW10155784 | Holder, Orifice (includes 13 & 14) (semi Rapid) (Replaces: 4456620) |
|
Immediately | $ 98.35 | ||||
| 16 | 9760037 | Head, Burner (lr, Rr) |
|
$ 95.05 | |||||
| 16 | WP4455981 | Head, Burner (lf) (Replaces: 4455981) |
|
Immediately | $ 78.77 | ||||
| 16 | 4455979 | Head, Burner (rf) |
|
$ 28.52 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | N/A | Harness, Wire |
|
- | |||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 20 | 4456626 | Harness, Wire Ignitor 15`` |
|
$ 66.34 | |||||
| 20 | 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 |
