Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131914 Panel, Manifold Appelez-nous -
2 3051314 Switch Oven Lt. Appelez-nous -
3 3131910 Knob-top Valve (4) Appelez-nous -
4 3131703 Knob-thermo Appelez-nous -
5 3131655 Clock, Single Stem Appelez-nous -
6 3131336 Bezel-clock Appelez-nous -
7 3131472 Knob-clock Appelez-nous -
8 618T038P05 Rod, Main Top Support Appelez-nous -
9 3011558 Brkt Mn Top Hinge (lh) Appelez-nous -
10 3011559 Brkt Mn Top Hinge (rh) Appelez-nous -
11 283T013W01-18 Grate (4) Appelez-nous -
12 3934001 Pnl Main Top (white) Appelez-nous -
12 3934002 Pnl Main Top (almond) Appelez-nous -
13 3131190 Cover-vent Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

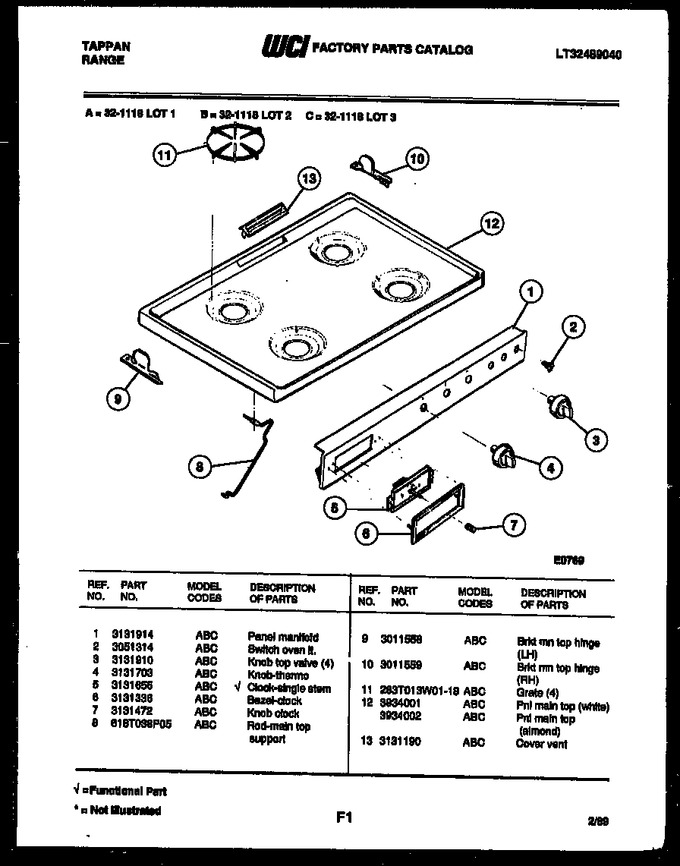

Diagram for 32-1118-23-03
