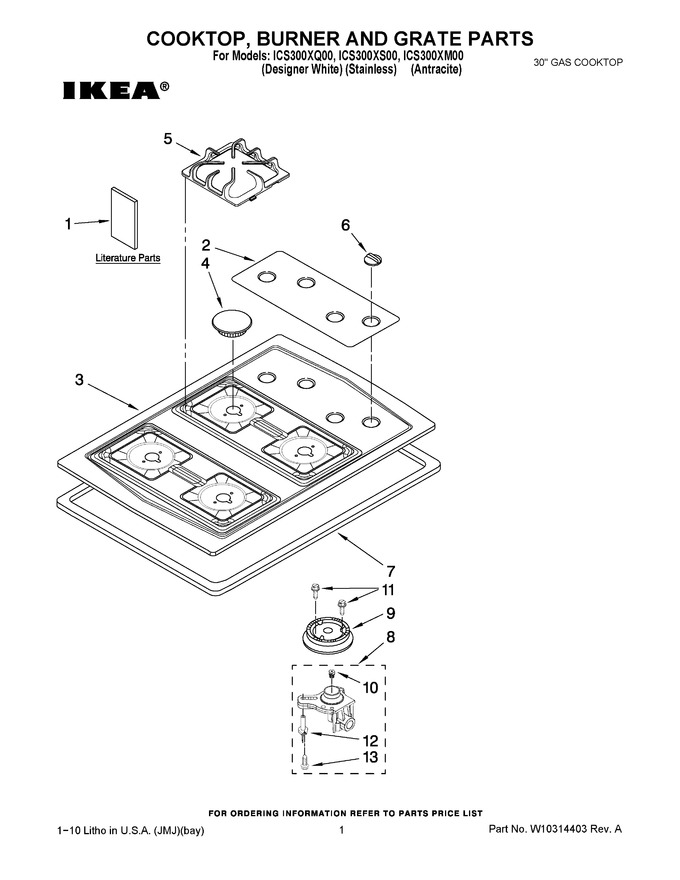

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10131955 | Installation Instructions |
|
- | |||||
| 1 | 3192098 | Wiring Diagram |
|
- | |||||
| 1 | 8304572 | Installation Instructions, Undercounter |
|
- | |||||
| 1 | W10254048 | Owners Manual |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 9759440 | L.p. Conversion Instructions |
|
- | |||||
| 2 | W10253846 | Panel, Control (white) |
|
- | |||||
| 2 | W10253848 | Panel, Control (stainless) |
|
- | |||||
| 2 | W10253850 | Panel, Control (antracite) |
|
- | |||||
| 3 | WP3191243 | Cooktop (white) (Replaces: 3191243) |
|
$ 279.93 | |||||
| 3 | W11230936 | Cooktop (stainless) (Replaces: W10140177) |
|
$ 377.15 | |||||
| 3 | W10153031 | Cooktop (antracite) |
|
- | |||||
| 4 | WP3191905 | Cap, Burner (12.5k (1)) (gray) (Replaces: 3191905) |
|
$ 77.99 | |||||
| 4 | WP3191904 | Cap, Burner (12.5k (1)) (black) (Replaces: 3191904) |
|
$ 157.85 | |||||
| 4 | WP3191903 | Cap, Burner (9.5k (2)) (gray) (Replaces: 3191903) |
|
$ 159.62 | |||||
| 4 | WP3191901 | Cap, Burner (9.5k) (2) (black) (Replaces: 3191901) |
|
$ 106.83 | |||||
| 4 | 3191899 | Cap, Burner 6k (1) (gray) |
|
$ 31.21 | |||||
| 4 | WP3191898 | Cap, Burner 6k (1) (black) (Replaces: 3191898) |
|
$ 60.86 | |||||
| 5 | 9761231 | Grate (4) (black) |
|
$ 78.62 | |||||
| 5 | 9761232 | Grate (4) (gray) |
|
- | |||||
| 6 | 9758788 | Knob, Control (4) (black) |
|
$ 18.03 | |||||
| 6 | 9758787 | Knob, Control (4) (white) |
|
- | |||||
| 6 | W10163494 | Knob, Control (4) (antracite Model) |
|
$ 16.02 | |||||
| 7 | 9760045 | Seal, Foam |
|
$ 236.42 | |||||
| 8 | WPW10155785 | Holder, Orifice (rapid) (Replaces: W10155785) |
|
$ 102.43 | |||||
| 8 | WPW10155784 | Holder, Orifice (semi Rapid) (Replaces: W10155784) |
|
Immediately | $ 98.35 | ||||
| 8 | WPW10128448 | Holder, Orifice (auxi) (Replaces: W10128448) |
|
Immediately | $ 100.54 | ||||
| 9 | WP4455981 | Head, Burner (lf) (Replaces: 4455981) |
|
Immediately | $ 78.77 | ||||
| 9 | 9760037 | Head, Burner (lr, Rr) |
|
$ 95.05 | |||||
| 9 | 4455979 | Head, Burner (rf) |
|
$ 28.52 | |||||
| 10 | WP3192523 | Orifice (semi Rapid) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 10 | WP3192529 | Orifice (auxi) (Replaces: 3192529) |
|
$ 86.35 | |||||
| 10 | WP9753930 | Orifice (rapid) (Replaces: 3192524) |
|
$ 80.19 | |||||
| 11 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 12 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 49.45 | ||||
| 13 | WP8273062 | Screw, Spark Electrode (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| NI | 4456626 | Harness, Wire Ignitor 15`` |
|
$ 66.34 | |||||
| NI | 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 |
