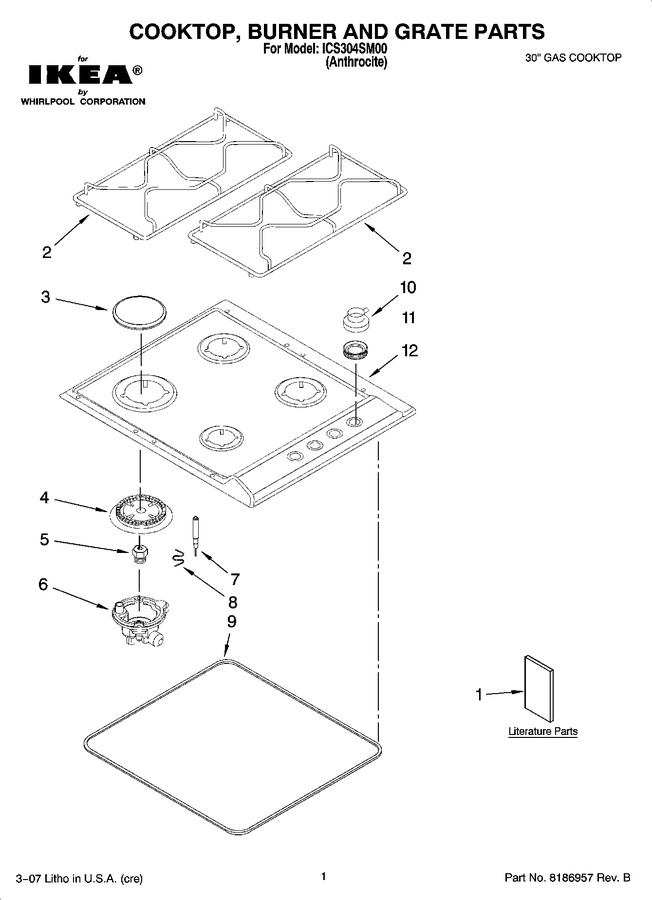

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8186961 | Installation Instructions |
|
- | |||||
| 1 | 8186960 | Use & Care Guide |
|
- | |||||
| 1 | 8186959 | Lp Conv.instr. |
|
- | |||||
| 2 | 8186803 | Grate |
|
- | |||||
| 3 | 8186813 | Cap, Burner (lf) |
|
- | |||||
| 3 | 8186812 | Cap, Burner (lr, Rr) |
|
$ 58.41 | |||||
| 3 | 8186811 | Cap, Burner (rf) |
|
- | |||||
| 4 | 8186809 | Head, Burner (lr,rr) |
|
$ 38.55 | |||||
| 4 | 8186808 | Head, Burner (rf) |
|
- | |||||
| 4 | 8186810 | Head, Burner (lf) |
|
- | |||||
| 5 | 8186814 | Orifice (natural) |
|
$ 48.86 | |||||
| 5 | 8186815 | Orifice (lp) |
|
$ 62.33 | |||||
| 6 | 8186807 | Holder, Orifice (lf) |
|
- | |||||
| 6 | 8186806 | Holder, Orifice (lr,rr) |
|
$ 35.33 | |||||
| 6 | 8186805 | Holder, Orifice (rf) |
|
- | |||||
| 7 | 8186819 | Plug, Spark |
|
$ 100.80 | |||||
| 8 | 8186820 | Spring |
|
- | |||||
| 9 | 8186834 | Seal, Foam |
|
- | |||||
| 10 | 8186804 | Knob |
|
- | |||||
| 11 | 8186833 | Gasket, Knob |
|
- | |||||
| 12 | 8186802 | Cooktop, Glass |
|
- |
