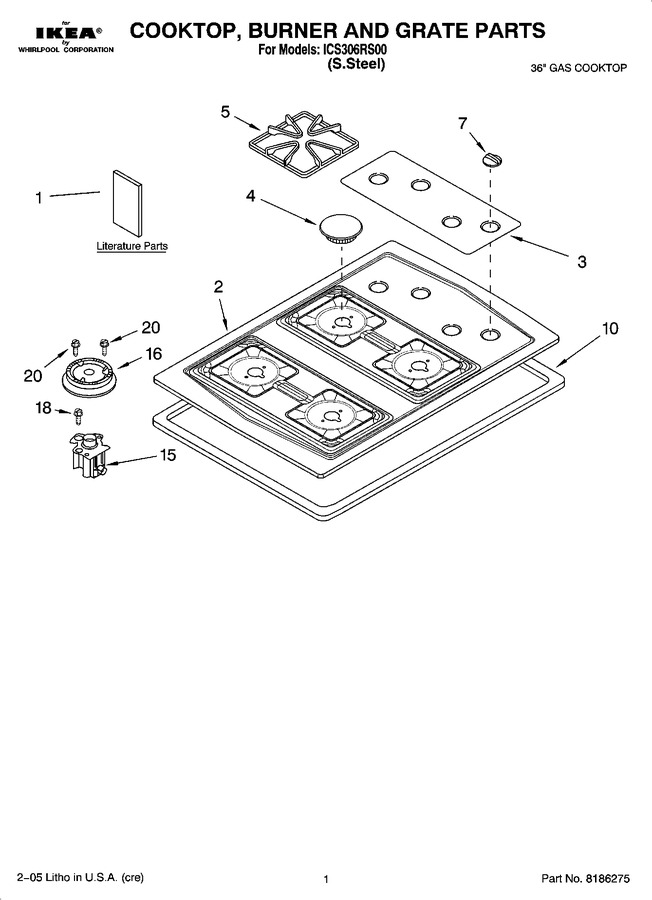

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3192098		Wiring Diagram		Appelez-nous	-
1	4455834		Installation Instructions		Appelez-nous	-
1	9760040		Use & Care Guide		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	9759440		L.p. Conversion Instructions		Appelez-nous	-
2	3191289		Cooktop (stainless)		Appelez-nous	-
3	9759872		Panel, Control		Appelez-nous	-
4	WP3191901		Cap, Burner Black (rr - Lr)   (Replaces: 3191901)				$ 106.83
4	WP3191898		Cap, Burner Black (rf)   (Replaces: 3191898)				$ 60.86
4	WP3191904		Cap, Burner (black (lf))   (Replaces: 3191904)				$ 157.85
5	9761231		Grate (4)				$ 78.62
7	9758788		Knob, Control (4)				$ 18.03
10	9760279		Seal, Foam				$ 51.94
15	WPW10155784		Holder, Orifice (includes 13 & 14) (semi Rapid)   (Replaces: 4456620)			Immediately	$ 98.35
15	WPW10155785		Holder, Orifice (includes 13 & 14) (rapid)   (Replaces: 4456619)				$ 102.43
15	WPW10128448		Holder, Orifice (includes 13 & 14) (auxi)   (Replaces: 4456621)			Immediately	$ 100.54
16	9760037		Head, Burner (lr, Rr)				$ 95.05
16	4455979		Head, Burner (rf)				$ 28.52
16	WP4455981		Head, Burner (lf)   (Replaces: 4455981)			Immediately	$ 78.77
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	N/A		Harness, Wire		Appelez-nous	-
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
20	4456626		Harness, Wire Ignitor 15``				$ 66.34
20	4456627		Harness, Wire (ignitor 28``)				$ 189.13
