01 - Cooktop, Burner And Grate Parts

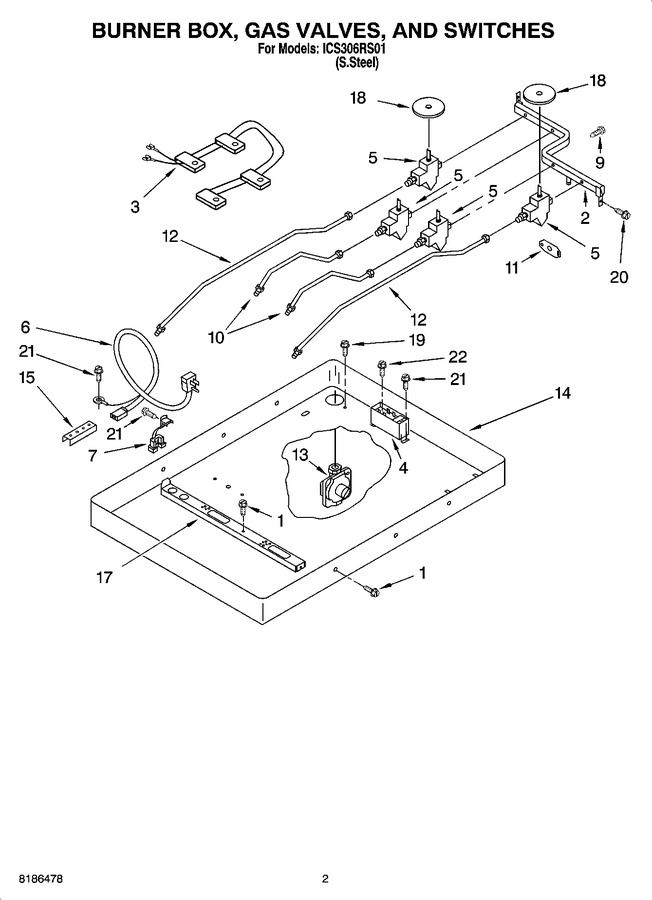

02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
2	9759354		Pipe, Manifold				$ 146.31
3	WP4456905		Harness & Switches   (Replaces: 4456905)			Immediately	$ 176.83
4	WPW10110491		Module, Spark   (Replaces: 8522423)			Immediately	$ 276.35
5	WP4456816		Valve, Burner (small (1))   (Replaces: 4456816)			Immediately	$ 286.55
5	WP4456817		Valve, Burner (large (3))   (Replaces: 4456817)				$ 286.38
6	W10392007		Power Cord   (Replaces: 9763116)				$ 96.25
7	4173634		Bushing, Cord   (Replaces: FE02349)				$ 5.83
9	8523704		Bolt, Gas Valve		Appelez-nous	-
10	3191318		Tubing, Burner Rr & Rf				$ 97.98
11	3192491		Bracket, Manifold		Appelez-nous	-
12	3191322		Tubing, Burner Lr & Lf		Appelez-nous	-
13	4454571		Regulator, Pressure				$ 108.68
14	4456781		Box, Burner		Appelez-nous	-
15	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
17	W10203756		Rail, Burner (2)   (Replaces: 8286099)		Appelez-nous	-
18	WP3188425		Seal, (4) Switch Cover   (Replaces: 3191387)				$ 82.61
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
20	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
21	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
22	WP3192741		Orifice/spud Pack   (Replaces: 3192741)				$ 41.81
22	N/A		Following Parts Not Illustrated And Optional Parts Not Included		Appelez-nous	-
22	3191827		Gas Conversion Kit (natural Gas To Lp Gas)		Appelez-nous	-
22	4455918		Hardware Kit (mounting)		Appelez-nous	-
22	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15

    View Diagram in Separate Window       Print Part List
