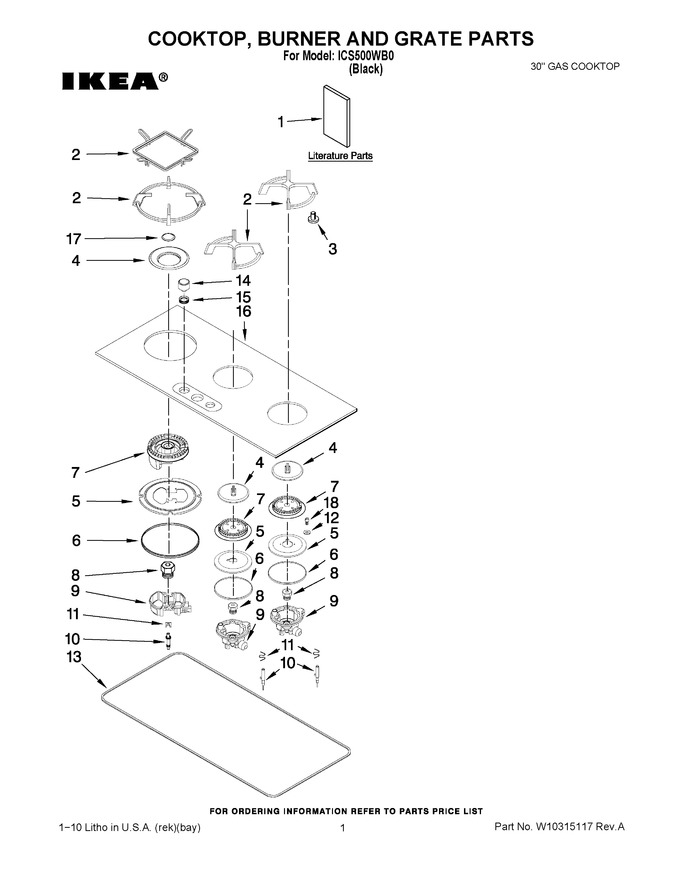

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10259745		Lp Conv.instr.		Appelez-nous	-
1	W10259744		Installation Instructions		Appelez-nous	-
1	W10315112		Use & Care Guide		Appelez-nous	-
2	W10236971		Grate (center/right)		Appelez-nous	-
2	W10236970		Grate (left Upper)		Appelez-nous	-
2	W10236972		Grate (left Lower)		Appelez-nous	-
3	W10258993		Bumper, Grate		Appelez-nous	-
4	W10236987		Cap, Burner (right)		Appelez-nous	-
4	W10236988		Cap, Burner (left)		Appelez-nous	-
4	W10236986		Cap, Burner (center)		Appelez-nous	-
5	W10236974		Ring (right)		Appelez-nous	-
5	W10236973		Ring (center)		Appelez-nous	-
5	W10236975		Ring (left)		Appelez-nous	-
6	8186902		Gasket (center/right)		Appelez-nous	-
6	W10237004		Gasket (left)		Appelez-nous	-
7	W10236985		Head, Burner (left)		Appelez-nous	-
7	W10236984		Head, Burner (right)		Appelez-nous	-
7	W10236983		Head, Burner (center)		Appelez-nous	-
8	W10236993		Orifice (lp)				$ 72.71
8	W10236992		Orifice (natural)		Appelez-nous	-
9	W10236980		Holder, Orifice (right)		Appelez-nous	-
9	W10236979		Holder, Orifice (center)		Appelez-nous	-
9	W10236982		Holder, Orifice (left)		Appelez-nous	-
10	W10236997		Plug, Spark (left)				$ 68.81
10	W10236995		Plug, Spark (center/right)		Appelez-nous	-
11	W10236998		Spring (left)		Appelez-nous	-
11	W10236996		Spring (center/right)		Appelez-nous	-
12	8186903		Gasket, Orif & Trim		Appelez-nous	-
13	WPW10237005		Seal, Foam   (Replaces: W10237005)			Immediately	$ 140.19
14	W10236976		Knob				$ 16.94
15	8186833		Gasket, Knob		Appelez-nous	-
16	W10236969		Cooktop, Glass		Appelez-nous	-
17	W10236990		Cap,inner		Appelez-nous	-
18	W10237003		Screw		Appelez-nous	-
