SELECT A DIAGRAM

01 - Cabinet-front (lde7500acm,adm) & (ldg)


02 - Cabinet-rear (lde7500acm,adm) & (ldg)


03 - Control Panel (lde7500acm,adm) & (ldg)


04 - Door (lde7500acm,adm) & (ldg)


05 - Heater (lde7500acm, Adm)


06 - Motor Drive (lde7500ace,ade) & (ldg)


07 - Motor Drive (lde7500acl,acw,adl,adw)


08 - Motor Drive (lde7500acm,adm) & (ldg)


09 - Motor Drive (ldg7500aal,aaw,abl,abw)


10 - Thermostats (lde7500acm,adm) & (ldg)


11 - Tumbler (lde7500acm,adm) & (ldg)

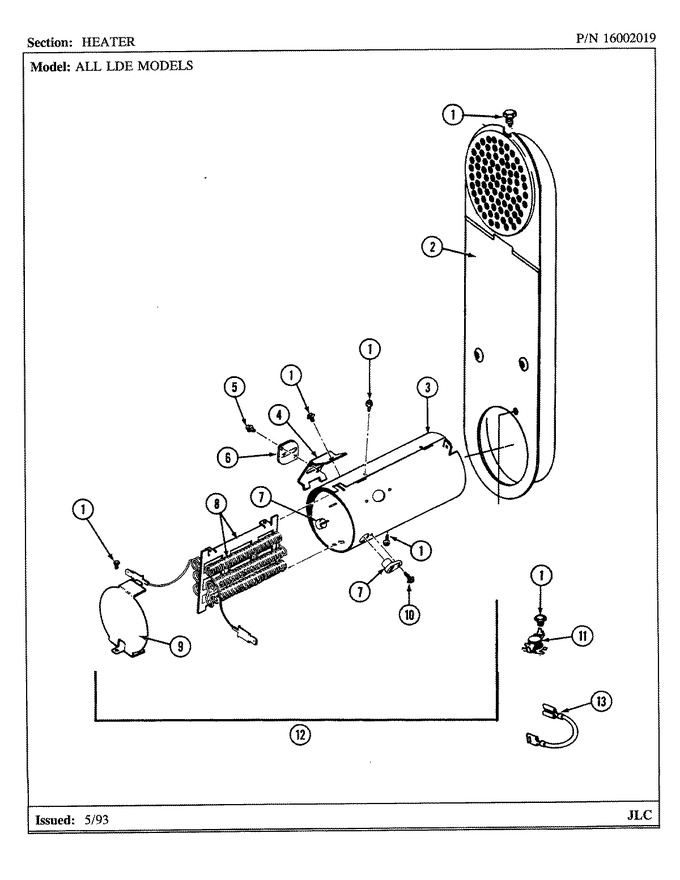

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 211294)	A5		Immediately	$ 7.04
2	308503		Inlet Duct Assy.	A5	Appelez-nous	-
3	314995		Heater Enclosure	A5	Appelez-nous	-
4	315346		Bracket, Thermal Fuse	A5	Appelez-nous	-
5	WP90767		Screw   (Replaces: 314848)	A5		Immediately	$ 7.04
6	WP307473		Fuse, Thermal   (Replaces: 307473)	A5		Immediately	$ 55.22
7	314998		Insulator, Terminal	A5			$ 18.77
8	WPY308612		Heater Sub-assembly (240v)   (Replaces: 307184)	A5		Immediately	$ 260.46
9	314999		Shield, Radiant	A5	Appelez-nous	-
10	314554		Screw	A5	Appelez-nous	-
11	308217		Thermostat,hi-limit(canada)	A5	Appelez-nous	-
12	WP307178		Heater Assembly(complete 240v)   (Replaces: 307178)	A5			$ 369.81
13	WPY307173		Wire, Jumper   (Replaces: Y307173)	A5			$ 6.47
