SELECT A DIAGRAM
01 - Cabinet-front
02 - Cabinet-rear

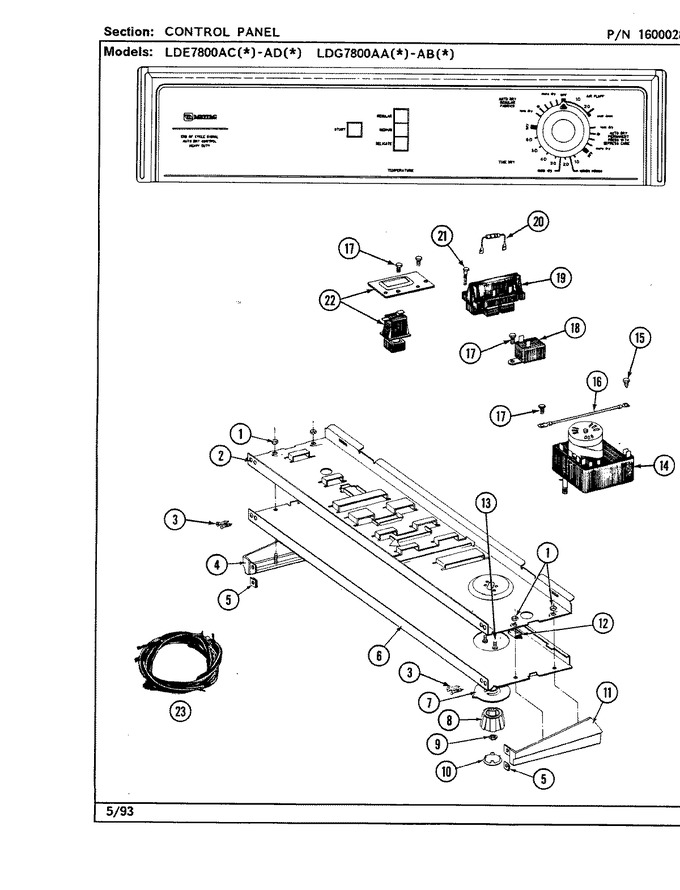

03 - Control Panel
04 - Door
05 - Heater
06 - Motor Drive
07 - Thermostats
08 - Tumbler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 214872 | Palnut, End Cap | A3 |
|
- | ||||
| 2 | 314184 | Back Up Plate | A3 |
|
- | ||||
| 3 | 210932 | Screw, No.8 X 9/16 Ctsk | A3 |
|
- | ||||
| 4 | 207215 | End Cap Lh | A3 |
|
- | ||||
| 5 | 214894 | Fastener, End Cap | A3 |
|
- | ||||
| 6 | 307319 | Control Panel | A3 |
|
- | ||||
| 7 | 315042 | Dial Skirt | A3 |
|
- | ||||
| 8 | 315041 | Knob, Timer | A3 |
|
- | ||||
| 9 | W10155650 | Nut (Replaces: 312273) | A3 |
|
$ 12.03 | ||||
| 10 | 215821 | Cap, Knob | A3 |
|
- | ||||
| 11 | 207216 | End Cap Rh | A3 |
|
- | ||||
| 12 | 214897 | Pad, Control Panel | A3 |
|
- | ||||
| 13 | WP488234 | Screw, Switches (Replaces: 315317) | A3 |
|
$ 6.07 | ||||
| 14 | WPY308254 | Timer (Replaces: Y308254) | A3 |
|
$ 323.88 | ||||
| 15 | WP90767 | Screw (Replaces: 211294) | A3 |
|
Immediately | $ 7.04 | |||
| 16 | 204807 | Grnd.wire,supp.plte To Top Cvr | A3 |
|
- | ||||
| 17 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | A3 |
|
$ 6.75 | ||||
| 18 | WP694419 | Buzzer - Non-adjustable (Replaces: 305205) | A3 |
|
$ 114.90 | ||||
| 19 | 307304 | Temp Control Switch 3 Button | A3 |
|
- | ||||
| 20 | 306916 | Resistor, Med Temp Elec | A3 |
|
- | ||||
| 20 | 306917 | Resistor, Med Temp Gas | A3 |
|
- | ||||
| 21 | WP67006908 | Screw-temp. Switch To Panel (Replaces: 213117) | A3 |
|
Immediately | $ 7.16 | |||
| 22 | 307305 | Switch Push To Start | A3 |
|
- | ||||
| 23 | 308326 | Wire Harness | A3 |
|
- | ||||
| 23 | 308327 | Wire Harness | A3 |
|
- | ||||
| 23 | 315093 | Manual, Use & Care | A3 |
|
- | ||||
| 24 | 315079 | Manual, Use & Care | A3 |
|
- | ||||
| 24 | 16000327 | Guide, Quick Ref. - Maytag | A3 |
|
- |
