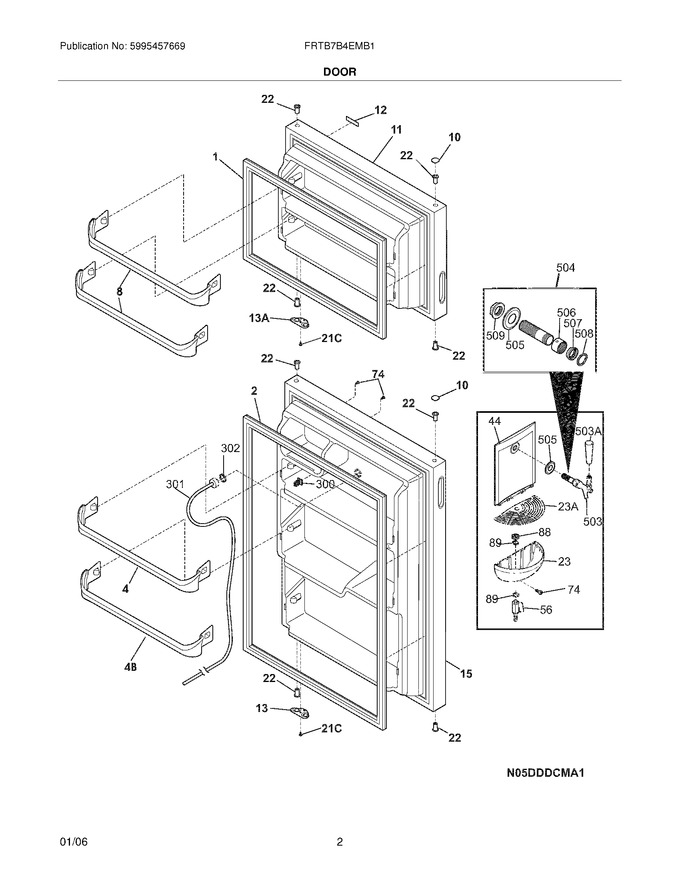

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241872510 | Gasket,refr Door Seal ,black ,magnetic (Replaces: 240542122) |
|
$ 198.03 | |||||
| 4 | 240535101 | Rack-door |
|
Immediately | $ 28.57 | ||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 48.20 | ||||
| 10 | 240381303 | Plug-button,black ,hinge Brg Hole |
|
$ 69.77 | |||||
| 11 | 240433503 | Door-frzr,silver Mist ,complete Assy |
|
- | |||||
| 12 | 241808601 | Label-nameplate,black (Replaces: 240415204) |
|
$ 12.69 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 15 | 240428803 | Door-refr,silver Mist ,complete Assy |
|
- | |||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 23 | 241662501 | Sump-dispenser,black |
|
- | |||||
| 44 | 241662601 | Cover-module,black |
|
- | |||||
| 56 | 5304451131 | Drain Sump Kit |
|
- | |||||
| 74 | 240383403 | Screw,truss Hd Quad ,no.10-16 X .500 ,black |
|
- | |||||
| 88 | 241672601 | Nut,hex Jam ,1/4-18 |
|
- | |||||
| 89 | 241672501 | Washer,neoprene |
|
- | |||||
| 300 | 218515401 | Clip |
|
$ 17.72 | |||||
| 301 | 5304443662 | Hose,delivery ,3/16`` Id X 5` |
|
- | |||||
| 302 | 5304443664 | Washer,sealing ,neoprene ,(2) |
|
$ 10.71 | |||||
| 503 | 5304443658 | Faucet,standard |
|
$ 319.78 | |||||
| 504 | 5304451133 | Shank Assembly,faucet |
|
- | |||||
| 505 | 5304443667 | Flange,sealing ,plastic ,black |
|
- | |||||
| 506 | 5304443668 | Nut,faucet Coupling ,chrome |
|
- | |||||
| 507 | 5304443669 | Sleeve |
|
- | |||||
| 508 | 5304443670 | Snap Ring |
|
- | |||||
| 509 | 5304443672 | Lock Nut |
|
- | |||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 21.27 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 23A | 241662701 | Drip Tray,black |
|
- | |||||
| 4B | 240535201 | Rack-door |
|
Immediately | $ 30.34 | ||||
| F1 | 241872507 | Gasket-frzr Door,black ,magnetic (Replaces: 240542119) |
|
$ 165.85 | |||||
| F503 | 5304443659 | Knob,faucet ,black |
|
- | |||||
| NI | 241669301 | Ferrule-inner |
|
- | |||||
| NI | 241669401 | Ferrule-outer |
|
- | |||||
| NI | 5304443671 | Cleaning Kit,deluxe |
|
$ 284.70 | |||||
| NI | 5304451132 | Regulatory Washer Kit |
|
- | |||||
| NI | 5304451963 | Drain Sump Hose Kit |
|
- |
