SELECT A DIAGRAM

01 - Cabinet

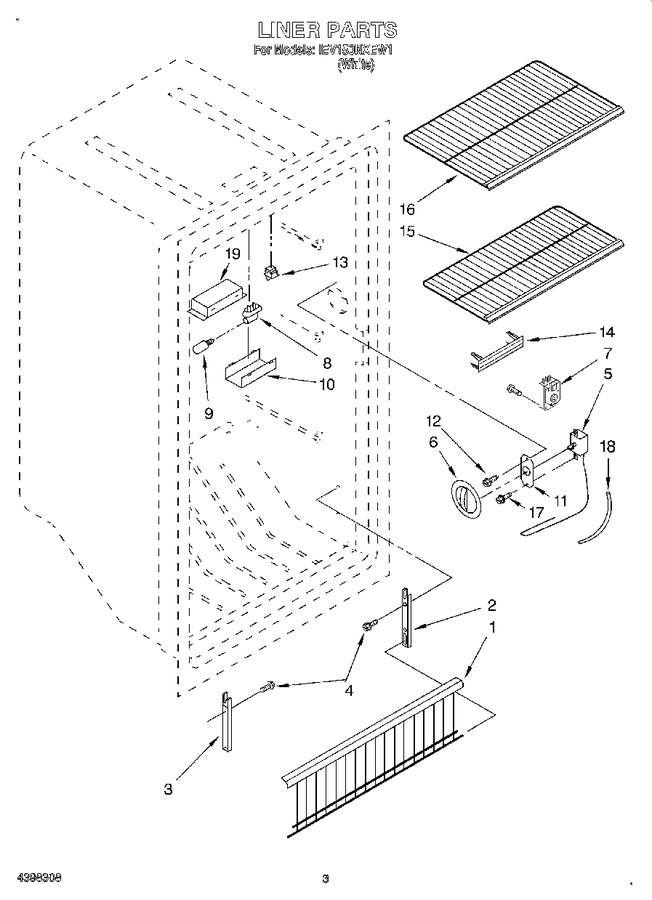

02 - Liner


03 - Door


04 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357163		Gate		Appelez-nous	-
2	4356889		Support, Fence, (r.h.)		Appelez-nous	-
3	4356890		Support, Fence, (l.h.)		Appelez-nous	-
4	4356891		Screw (4)		Appelez-nous	-
5	WP4-83053-003		Thermostat   (Replaces: 4356988)				$ 218.54
6	4357040		Knob, Thermostat		Appelez-nous	-
7	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 170.69
8	4356874		Socket, Lamp		Appelez-nous	-
9	W10873798		Bulb, Light   (Replaces: 4356311)			Immediately	$ 12.53
10	4357285		Shield, Light		Appelez-nous	-
11	1-81154		Thermostat, Plate   (Replaces: 4357287)				$ 12.86
12	WPW10068250		Screw   (Replaces: 4357042)				$ 3.66
13	W11384469		Light, Switch   (Replaces: 4390513)			Immediately	$ 33.51
14	WP3-80414-103		Vent Plug   (Replaces: 4356938)				$ 11.57
15	4-82314-001		Shelf, Lower   (Replaces: 4357172)				$ 114.89
16	4-82315-001		Shelf, Upper   (Replaces: 4357171)				$ 302.10
17	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 12.62
18	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 7.16
19	4357286		Bracket, Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
