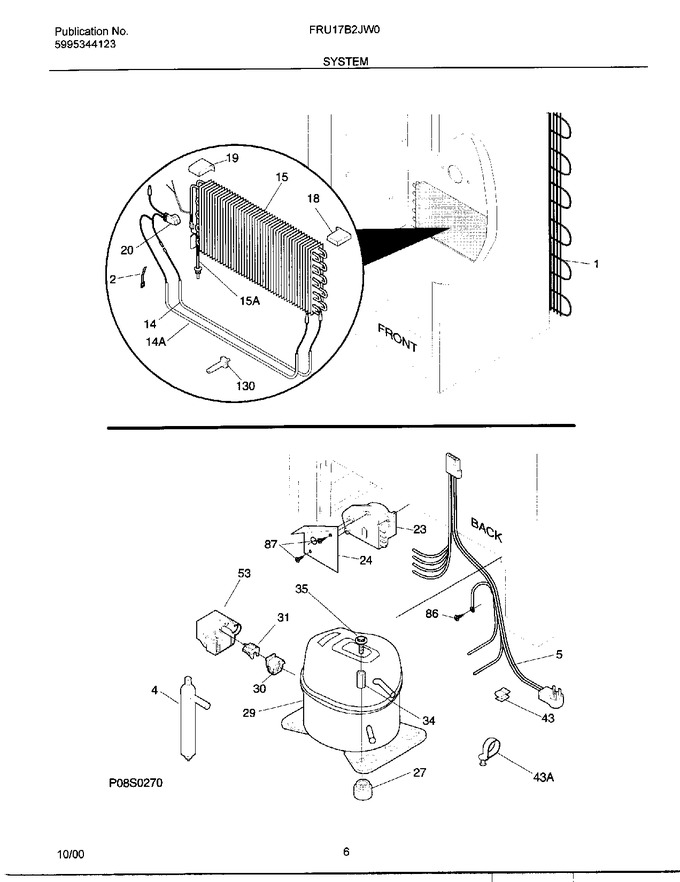

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door
04 - Cabinet
06 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 14 | 216730700 | Heater-defrost |
|
Immediately | $ 116.44 | ||||
| 18 | 216727600 | Insulator-evap,styrofoam |
|
- | |||||
| 19 | 216727700 | Insulator-evap,styrofoam |
|
- | |||||
| 20 | 297216600 | Thermostat-defrost (Replaces: 216731000) |
|
Immediately | $ 27.52 | ||||
| 23 | 5304518034 | Timer-defrost (Replaces: 216744400) |
|
Immediately | $ 57.55 | ||||
| 24 | 08016580 | Bracket |
|
- | |||||
| 27 | 216498900 | Grommet,compressor |
|
$ 13.01 | |||||
| 30 | 216681100 | Starter |
|
- | |||||
| 31 | 216100118 | Overload Protector |
|
$ 134.43 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 43 | 09950610 | Clip |
|
- | |||||
| 53 | 216347800 | Cover, Compressor |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 87 | 08037849 | Screw |
|
$ 8.98 | |||||
| 130 | 216730400 | Support-evaporator |
|
- | |||||
| 15A | 297217900 | Heat Exchanger (Replaces: 216751100) |
|
Immediately | $ 91.82 | ||||
| 43A | 216629700 | Clip-harness |
|
- | |||||
| F1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| F14A | 216730500 | Heater-internal |
|
- | |||||
| F15 | 297414901 | Evaporator (Replaces: 216737300) |
|
Immediately | $ 171.34 | ||||
| F29 | 216681000 | Compressor,w/o Electricals |
|
- | |||||
| F5 | 216722200 | Harness-main |
|
- | |||||
| NI | 216703900 | Thermostat-heater |
|
- | |||||
| NI | 216695300 | Relay |
|
$ 77.97 | |||||
| NI | 216502500 | Sleeve-tube Insert |
|
$ 10.85 |
