Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9751601PW Handle, Door-white Special Order $ 33.08

2 9780266 Screw (2) 10-24 X 5/8 Appelez-nous -
2 9781575 End Cap, Handle Appelez-nous -
3 9780265 Screw (4) 10 X 3/8 Appelez-nous -
3 9782034 Hinge, Door R Or L Appelez-nous -
4 9780265 Screw, Hinge (2) Appelez-nous -
4 9781690GW Panel, Door Appelez-nous -
4 3149333 Screw, Liner (2) Special Order $ 5.33

5 9781613 Retainer, Glass (4) Appelez-nous -
5 9780265 Screw, (4) Appelez-nous -
6 421474 Glass, Inner-outer Appelez-nous -
7 422642 Gasket, Oven Glass Appelez-nous -
8 9780265 Screw, (6) 10 X 3/8 Appelez-nous -
8 9780672GM Liner, Door Appelez-nous -
9 9750796 Drawer & Roller 10-24 X 1/4 Appelez-nous -
11 9781164PW Front, Drawer Appelez-nous -
11 WP90296 Clip   (Replaces: 90296) Special Order $ 7.07

11 423247 Screw, (4) Appelez-nous -
13 814229 Support, Roller   (Replaces: 423713) In-Stock Immediately $ 51.23


    View Diagram in Separate Window     Print Icon   Print Part List

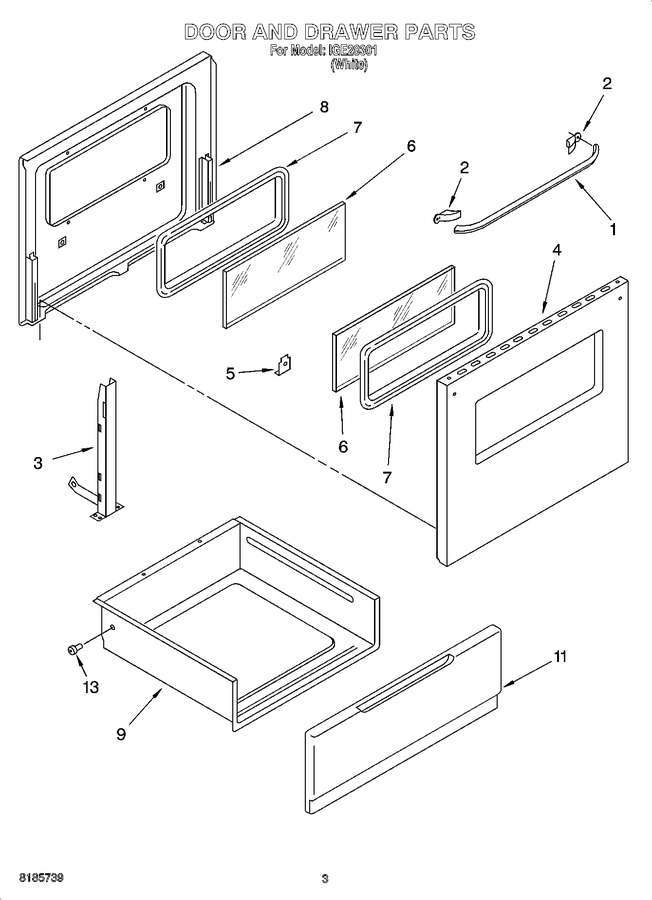

Diagram for IGE28301
