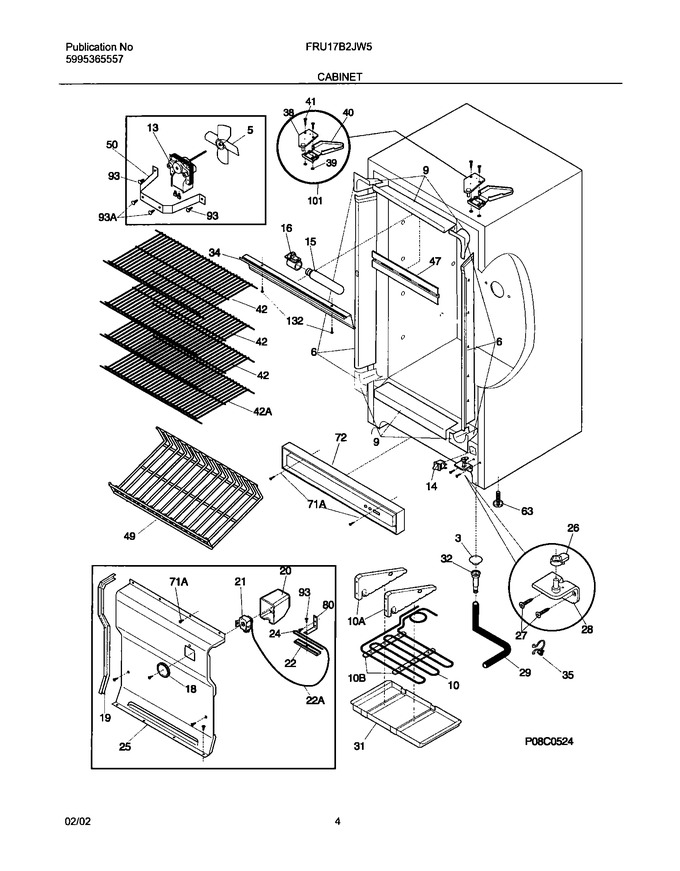

SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604200		Breaker Kit W/corners				$ 227.12
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
10	216740900		Pan-drain Assy		Appelez-nous	-
13	5304436055		Motor-fan   (Replaces: 216822500)				$ 184.37
14	216822900		Light/lamp, Ramp			Immediately	$ 70.16
16	297139501		Light/lamp,indicator   (Replaces: 216817600)				$ 19.52
18	216707200		Knob-control Cold				$ 44.10
19	216204900		Gasket, Evap Cover				$ 51.45
20	216230300		Cover, Temp Control				$ 49.88
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216737100		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313503)			Immediately	$ 15.90
31	216732400		Pan-drain				$ 208.48
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816200		Shield-light				$ 70.72
35	216273000		Clip, Drain Hose				$ 22.42
38	216808900		Hinge-upper				$ 92.87
39	5303294372		Nut Insert-hinge				$ 43.68
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	241710601		Screw   (Replaces: 5303001479)				$ 13.46
42	216458400		Shelf,14.50x27.88 ,wh		Appelez-nous	-
47	216661601		Baffle-plate				$ 51.76
49	216278900		Trivet				$ 183.65
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	216174000		Grille/kickplate,white		Appelez-nous	-
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
101	216835200		Kit-top Hinge				$ 50.99
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
10A	216710400		Bracket,top Drain Pan		Appelez-nous	-
10B	216710500		Bracket,btm. Drain Pan				$ 35.91
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
42A	216458200		Shelf,12.50x27.88 ,white		Appelez-nous	-
71A	216036601		Screw,quadrex   (Replaces: 216347500)				$ 13.65
93A	5303302760		Screw				$ 8.72
F15	5304517886		Lamp,light Bulb ,40 W ,120 V   (Replaces: 216608600)			Immediately	$ 73.06
F21	5304497345		Control-temperature   (Replaces: 216807800)			Immediately	$ 110.14
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216758400		Service Data Sheet		Appelez-nous	-
