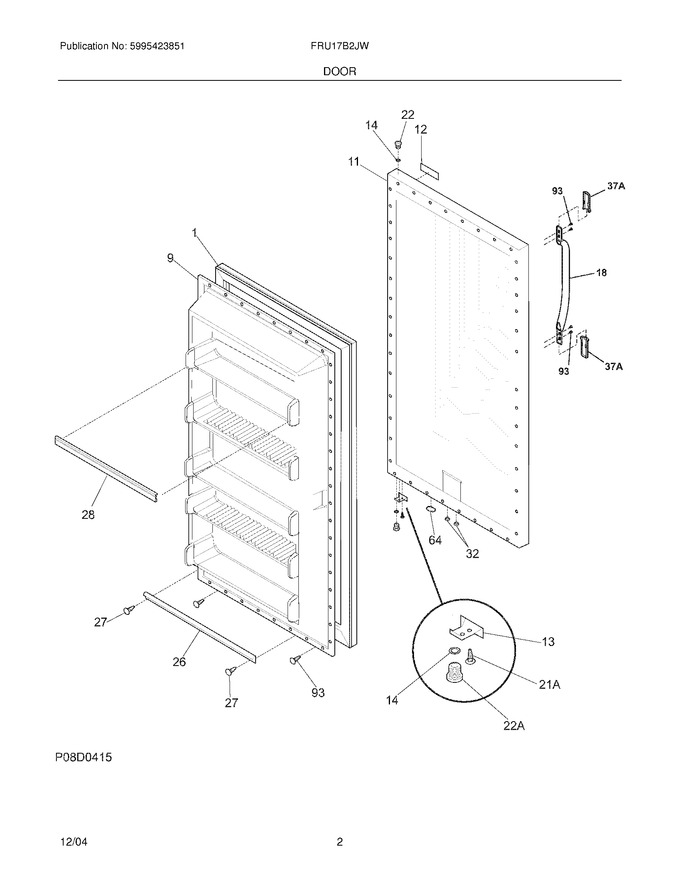

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507200 | Gasket-door,white (Replaces: 216522309) |
|
Immediately | $ 188.19 | ||||
| 9 | 216527813 | Panel-inner Door,frzr |
|
$ 270.75 | |||||
| 11 | 216526518 | Panel-outer Door,white |
|
- | |||||
| 12 | 241808601 | Nameplate (Replaces: 216884300) |
|
$ 12.69 | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 18 | 297311201 | Handle-door, White (Replaces: 218762701) |
|
Immediately | $ 80.60 | ||||
| 22 | 216970802 | Bearing,hinge ,top (Replaces: 216970800) |
|
Immediately | $ 10.85 | ||||
| 26 | 216524201 | Gasket,secondary (Replaces: 216524200) |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 28 | 216951600 | Rack-door,(5) |
|
$ 69.40 | |||||
| 32 | 5309950074 | Valve,breather ,door Base |
|
$ 12.48 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21A | 08005520 | Screw-door Stop |
|
- | |||||
| 22A | 297006800 | Bearing,hinge ,bottom (Replaces: 216503200) |
|
$ 12.29 | |||||
| 37A | 215870619 | Trim-handle, 2.47``, White, W/chrome Band |
|
$ 72.72 | |||||
| 37A | 218676001 | Band-decorative,chrome ,handle Trim |
|
$ 36.17 |
