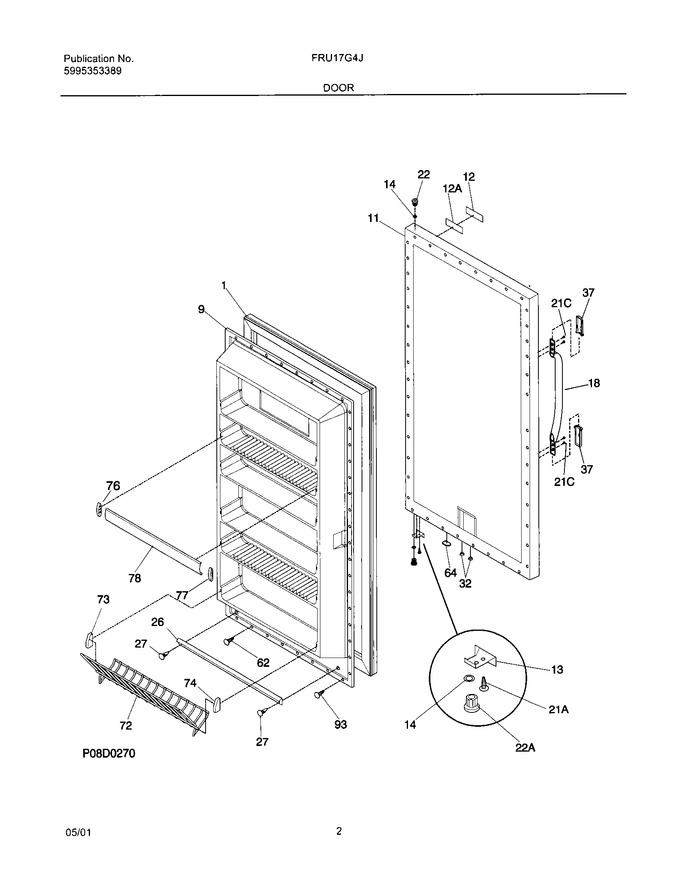

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522309)			Immediately	$ 188.19
9	216527815		Panel-inner Door,white		Appelez-nous	-
11	216526518		Panel-outer Door,white		Appelez-nous	-
12	316095402		Label-nameplate,frigidaire ,white				$ 148.59
12	216373000		Frame-nameplate				$ 4.04
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
21	08005520		Screw-door Stop		Appelez-nous	-
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	216443600		Bearing				$ 0.68
22	297006800		Bearing-hinge, Btm   (Replaces: 216503200)				$ 12.29
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel				$ 16.63
32	5309950074		Valve, Breather				$ 12.48
37	215870619		Trim-handle, 2.47``, White, W/chrome Band				$ 72.72
62	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
64	216403700		Plug-button, Base Door				$ 58.12
72	216514100		Shelf,tilt Out ,wire				$ 123.80
73	216513900		End Cap,tiltout ,lh				$ 48.86
74	216514000		End Cap,tiltout ,rh				$ 48.05
76	216521800		Support Psuedo Bin,lh				$ 24.05
77	216522100		Support Psuedo Bin,rh				$ 24.20
78	216579500		Rack Shelf,psuedo ,32		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85

    View Diagram in Separate Window       Print Part List
