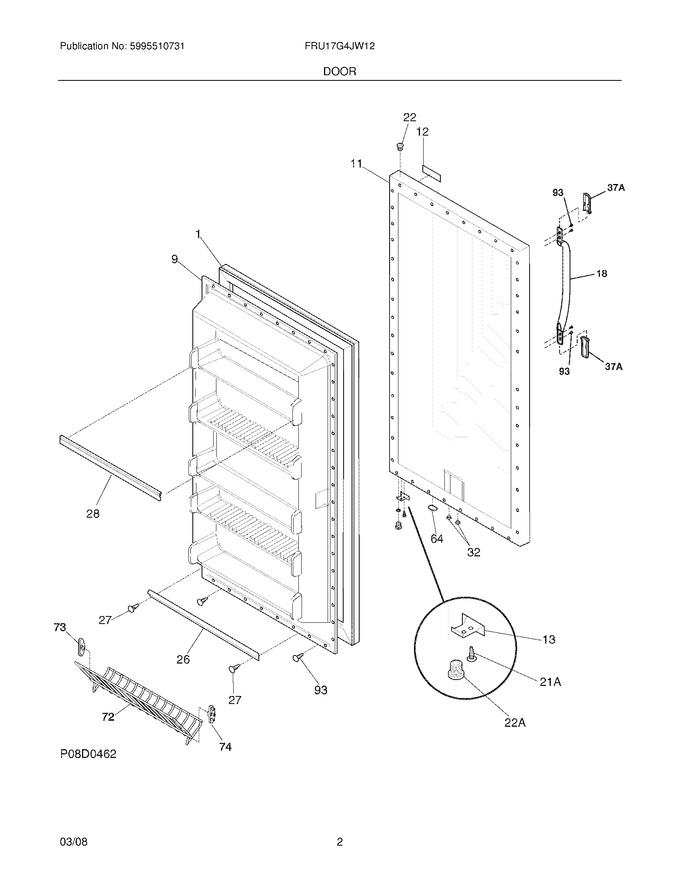

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522309)			Immediately	$ 188.19
9	216527813		Panel-inner Door				$ 270.75
11	216526518		Panel-outer Door,white		Appelez-nous	-
12	241808601		Nameplate   (Replaces: 216884300)				$ 12.69
13	08016354		Door Stop				$ 36.07
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
28	216806100		Rack-door,contour ,(4)				$ 80.59
32	5309950074		Valve, Breather				$ 12.48
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297118100		Shelf,tilt Out ,wire		Appelez-nous	-
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	5304464375		Screw,door Stop Mtg ,4.0 X 0.7-19.7 ,flat Hd,metric		Appelez-nous	-
22A	297006800		Bearing-hinge,btm, W/o`ring				$ 12.29
37A	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
37A	215870619		Trim-handle, 2.47``, White, W/chrome Band				$ 72.72
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
