SELECT A DIAGRAM
01 - Body
02 - Control System
03 - Door
New Model Search:

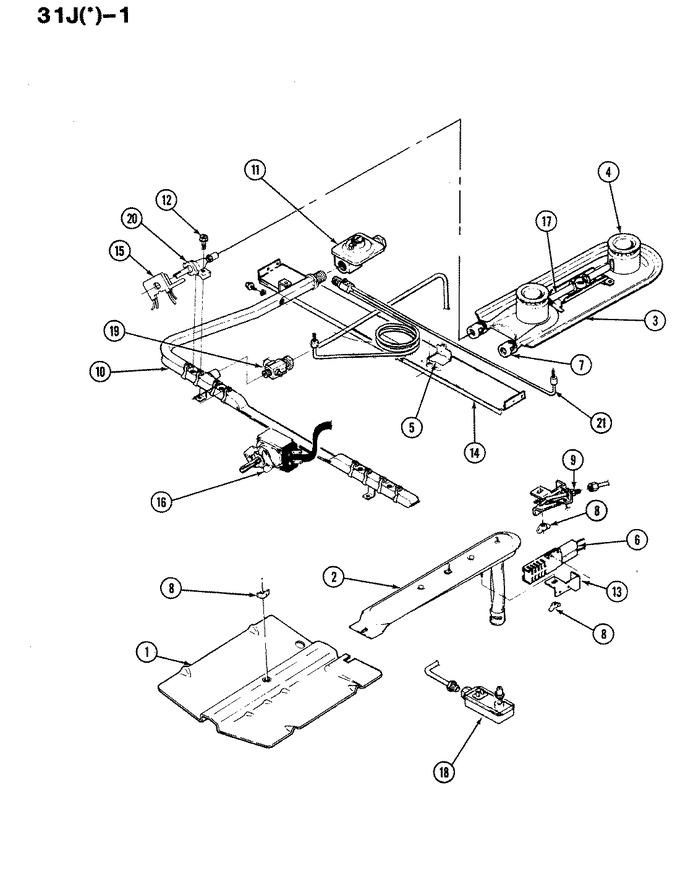

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 2 | 3403A015-45 | Burner Oven | 21 |
|
- | ||||
| 2 | 3403D027-45 | Burner, Oven | 24 |
|
- | ||||
| 2 | 7505P101-60 | Burner | 01 |
|
- | ||||
| 3 | 3412A004-19 | Burner, Top | 24 |
|
- | ||||
| 3 | 3412A004-23 | Uni-burner Assy | 01 |
|
- | ||||
| 4 | 7504P001-60 | Cap, Burner | 01 |
|
- | ||||
| 5 | W10124350 | Not Required Part Or See Note Igniter, Top (not Required) | 01 |
|
- | ||||
| 6 | W10124350 | Not Required Part Or See Note Igniter, Bake (not Required) | 01 |
|
- | ||||
| 6 | WP7711P135-60 | Knob, Valve (Replaces: 7711P135-60) | 01 |
|
$ 25.06 | ||||
| 6 | 7711P137-60 | Knob, Thermostat | 01 |
|
- | ||||
| 7 | 7103P070-60 | Nut, Top Pilot | 01 |
|
- | ||||
| 7 | 3411F004-34 | Mixer, Air | 01 |
|
- | ||||
| 8 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 9 | 1566267 | Pilot Assy. | 01 |
|
- | ||||
| 9 | 7432P068-60 | Lighter Pilot | 24 |
|
- | ||||
| 10 | 7513P028-60 | Pipe, Manifold | 01 |
|
- | ||||
| 10 | 7513P131-60 | Pipe Manifold | 24 |
|
- | ||||
| 10 | 7513P102-60 | Manifold Pipe | 13 |
|
- | ||||
| 11 | 3804F001-44 | Retainer, Burner Cap Threaded | 01 |
|
- | ||||
| 11 | 7510P002-60 | Regulator, Pressure | 01 |
|
- | ||||
| 12 | 7101P044-60 | Screw, Valve | 24 |
|
- | ||||
| 12 | W10124350 | Not Required Part Or See Note Sleeve (not Required) | 24 |
|
- | ||||
| 12 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 12 | 3411F006-34 | Mixer Air Oven Burner | 01 |
|
- | ||||
| 12 | 7214P003-60 | Sleeve | 01 |
|
- | ||||
| 12 | 7101P296-60 | Screw | 18 |
|
- | ||||
| 12 | 3411F006-35 | Mixer, Air | 21 |
|
- | ||||
| 13 | 3807F120-34 | Support | 01 |
|
- | ||||
| 14 | 3807F347-51 | Support, Top Burner | 01 |
|
- | ||||
| 14 | 3807F204-34 | Support, Top Pilot | 01 |
|
- | ||||
| 15 | W10124350 | Not Required Part Or See Note Switch, Top Ign (not Required) | 01 |
|
- | ||||
| 16 | 7515P032-60 | Thermostat | 24 |
|
- | ||||
| 16 | 7515P015-60 | Thermostat Oven | 01 |
|
- | ||||
| 16 | 7101P295-60 | Screw | 01 |
|
- | ||||
| 16 | 7515P026-60 | Thermostat | 13 |
|
- | ||||
| 16 | 7101P010-60 | Screw, Control | 24 |
|
- | ||||
| 17 | 3414F062-44 | Tubing, 3/16`` X 54``----na | 01 |
|
- | ||||
| 17 | 3414F099-44 | Tubing, Oven (3/8``) | 24 |
|
- | ||||
| 17 | 7506P006-60 | Tube, Flash | 01 |
|
- | ||||
| 17 | 3414F050-44 | Tubing 3/8 X 59 | 01 |
|
- | ||||
| 18 | 7501P061-60 | Valve, Oven | 01 |
|
- | ||||
| 18 | 7501P101-60 | Valve, Oven | 24 |
|
- | ||||
| 19 | W10124350 | Not Required Part Or See Note Valve (not Required) | 01 |
|
- | ||||
| 20 | 7502P222-60 | Valve | 18 |
|
- | ||||
| 20 | 7502P174-60 | Valve, Top Burner | 24 |
|
- | ||||
| 20 | 7502P109-60 | Valve, Top Burner | 01 |
|
- | ||||
| 21 | 7505P193-60 | Burner, Pilot (natural) | 24 |
|
- | ||||
| 21 | 7505P081-60 | Burner, Pilot | 01 |
|
- |
