SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

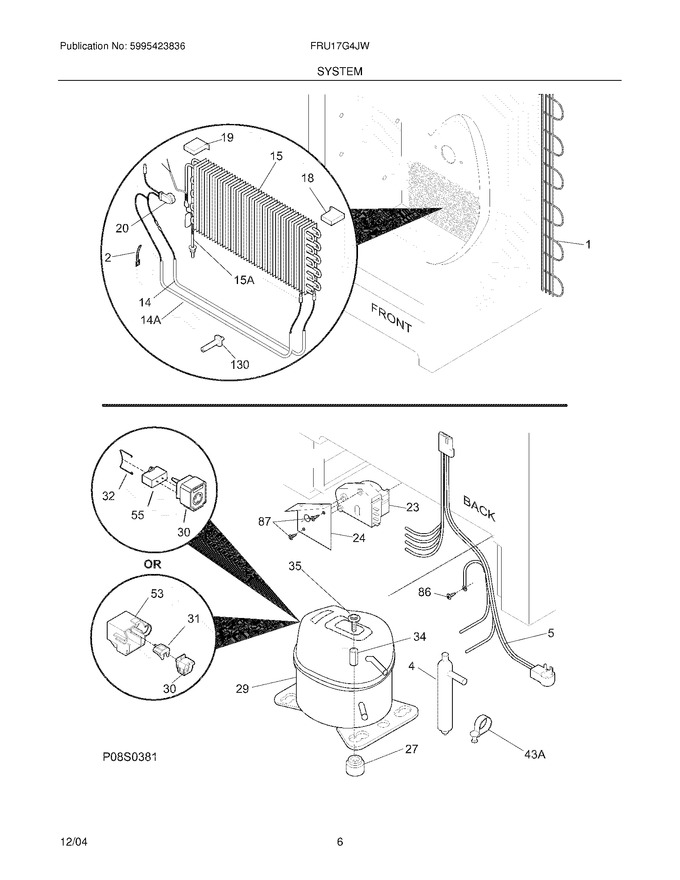

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
14	216730700		Heater-defrost			Immediately	$ 116.44
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
23	5304518034		Timer,defrost ,12 Hour   (Replaces: 216744400)			Immediately	$ 57.55
24	08016580		Bracket		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216596800		Starter/,relay		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
53	216347800		Cover Terminal,cover-comp Term		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
130	216486800		Support,evaporator Mtg		Appelez-nous	-
15A	297217900		Heat Exchanger   (Replaces: 216751100)			Immediately	$ 91.82
43A	216629700		Clip		Appelez-nous	-
F1	5300083897		Condenser				$ 538.37
F14A	216730500		Heater-internal		Appelez-nous	-
F15	297414901		Evaporator   (Replaces: 216737300)			Immediately	$ 171.34
F29	216888100		Compressor,w/o Electricals		Appelez-nous	-
F31	216954208		Overload Protector   (Replaces: 216100106)				$ 74.42
F5	216945200		Harness-main		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 10.85

    View Diagram in Separate Window       Print Part List
