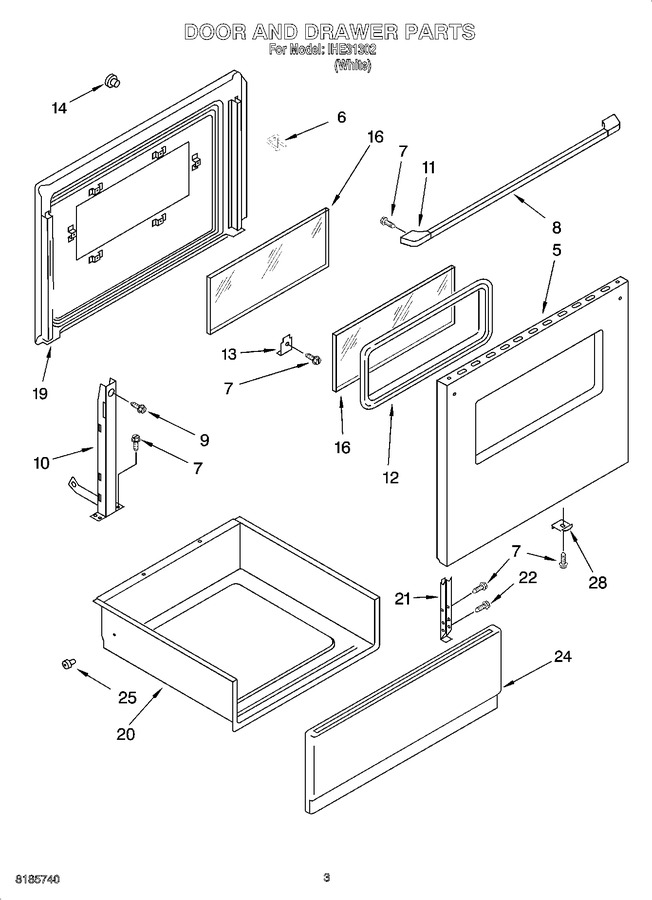

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	9781692GW		Panel, Door		Appelez-nous	-
6	9750676		Retainer, Door (2)		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	9751690PW		Handle, Door		Appelez-nous	-
9	3149333		Screw, 10-16 X 1/2				$ 5.33
10	9782032		Hinge, Door R Or L		Appelez-nous	-
11	9781575		End Cap, Handle (r Or L)		Appelez-nous	-
12	9750685		Gasket, Glass		Appelez-nous	-
13	9781613		Retainer, Glass (6)		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 72.68
16	9781651		Inner Glass, Clear		Appelez-nous	-
19	9781599GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	WP90296		Clip   (Replaces: 90296)				$ 7.07
22	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
24	9782108PW		Front, Drawer		Appelez-nous	-
25	814229		Roller, Support (2)   (Replaces: 423713)			Immediately	$ 51.23
28	9781502		Spacer, Door (2)		Appelez-nous	-
