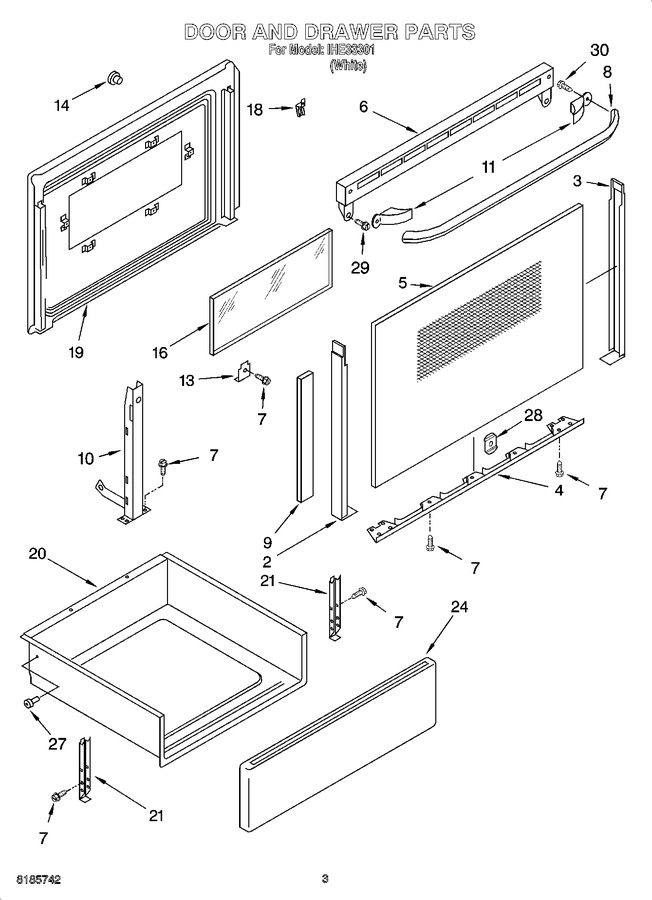

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9782003PW		Trim, Door-left		Appelez-nous	-
3	9782004PW		Trim, Door-right		Appelez-nous	-
4	9781209PW		Trim, Door Bottom		Appelez-nous	-
5	9781781PW		Glass, Door Front		Appelez-nous	-
6	9781659		Gasket, Vent		Appelez-nous	-
6	9753498GW		Vent, Door		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	9751690PW		Handle, Door		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	9782032		Hinge, Door R Or L		Appelez-nous	-
11	9781575		Endcap (2)		Appelez-nous	-
13	9781613		Retainer, Glass (4)		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 72.68
16	9781651		Inner Glass, Clear		Appelez-nous	-
18	9750676		Retainer, Door		Appelez-nous	-
19	9781599GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
24	9782108PW		Front, Drawer		Appelez-nous	-
27	WP90296		Clip   (Replaces: 90296)				$ 7.07
27	814229		Roller, Support   (Replaces: 422604)			Immediately	$ 51.23
28	9781502		Retainer, Door (2)		Appelez-nous	-
29	9781196		Screw,10-24 X 1.25		Appelez-nous	-
30	9780266		Screw, 10-24 X 5/8		Appelez-nous	-
