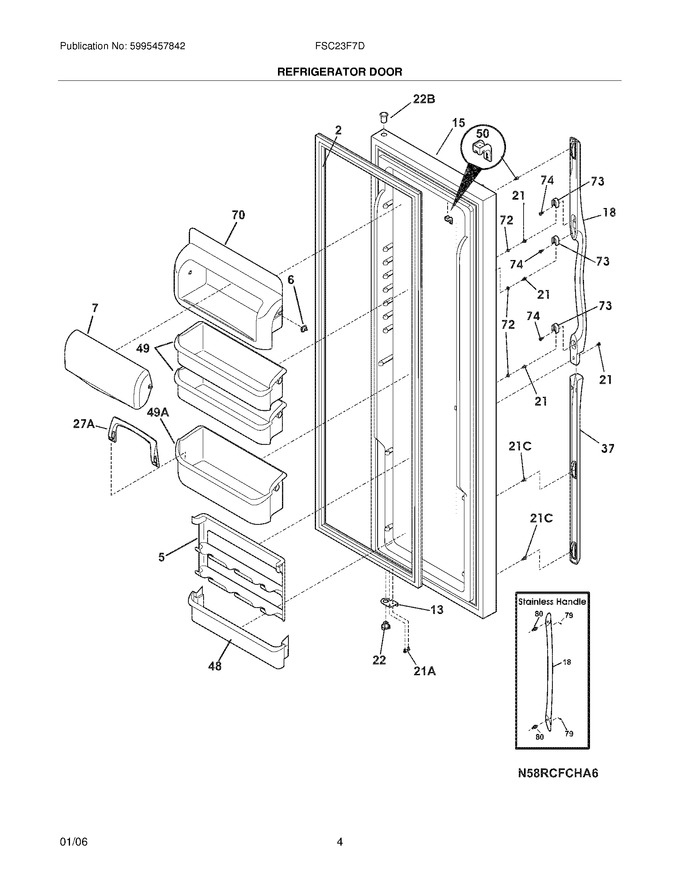

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
13	240581905		Door Stop,black ,ref				$ 60.25
15	241534505		Door-refr,black ,complete Assy				$ 435.32
18	240359103		Handle-door,black ,rh		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
37	240359203		Trim-handle`30.13`` ,black ,lower		Appelez-nous	-
48	241511701		Bin-door,ref			Immediately	$ 67.21
49	241505301		Bin-door,2-liter			Immediately	$ 76.40
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598401)				$ 11.88
21C	240521302		Screw,no.8-18 X 3/4				$ 8.19
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
27A	240396102		Retainer,tall Bottle				$ 19.13
49A	241505501		Bin-door,gallon			Immediately	$ 99.03
F2	241510207		Gasket-refr Door,black ,magnetic   (Replaces: 241510203)			Immediately	$ 97.14
