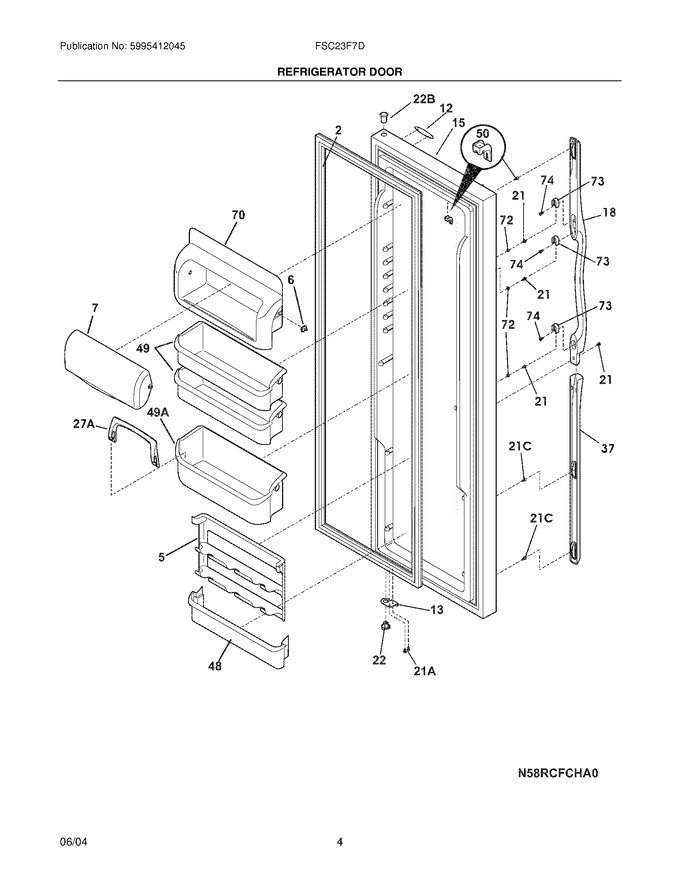

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
12	240449708		Nameplate				$ 38.48
13	5303918455		Door Stop,white,ref   (Replaces: 240537101)				$ 142.04
15	241534504		Door-refr,white ,complete Assy				$ 315.99
18	240359101		Handle-door,white		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22	240328201		Bearing-hinge,closer			Immediately	$ 17.72
37	240359201		Trim-handle,30.13`` ,white ,lower		Appelez-nous	-
48	241511701		Bin-door,ref			Immediately	$ 67.21
49	241505301		Bin-door,2-liter			Immediately	$ 76.40
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21C	240521302		Screw,no.8-18 X 3/4				$ 8.19
22B	240328401		Bearing-hinge,upper				$ 12.97
27A	240396102		Retainer,tall Bottle				$ 19.13
49A	241505501		Bin-door,gallon			Immediately	$ 99.03
F2	241510201		Gasket-refr Door,black ,magnetic			Immediately	$ 222.14
