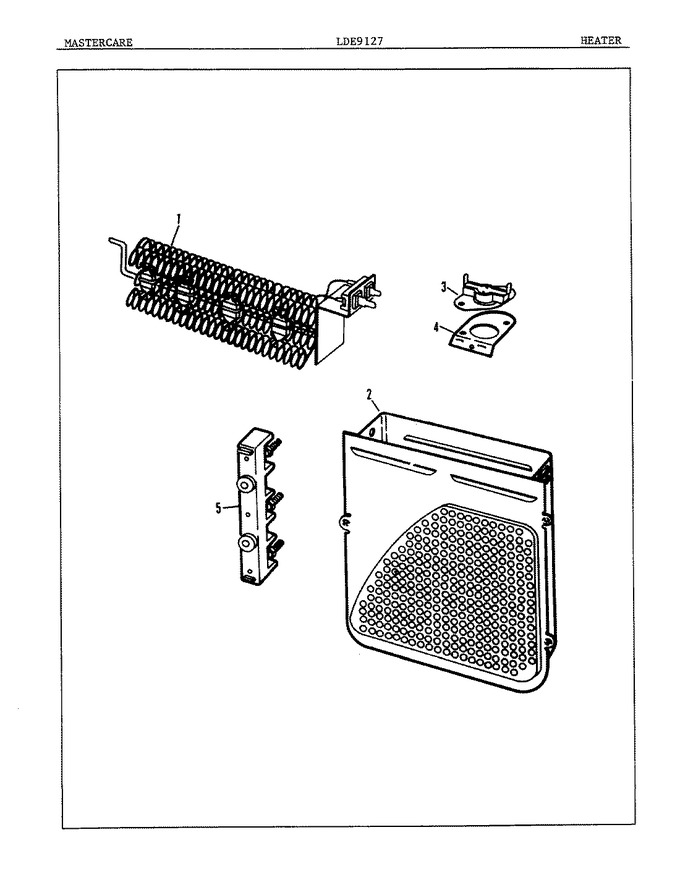

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LA-1044 | Element, Heating (Replaces: 53-0180) |
|
Immediately | $ 51.91 | ||||
| 1 | WP3400074 | Screw (Replaces: 25-7863) |
|
$ 6.47 | |||||
| 2 | 53-0129 | Heater Housing |
|
- | |||||
| 2 | 25-7819 | Screw No.8-18x1/2 Pan Hd |
|
- | |||||
| 3 | W10124350 | Not Required Part Or See Note Screw- Purchase Locally |
|
- | |||||
| 3 | WP53-0771 | Hi Lmt Tstat (Replaces: 53-0306) |
|
$ 110.87 | |||||
| 4 | 53-0285 | Bracket, Thermostat |
|
- | |||||
| 4 | WP90767 | Screw (Replaces: 25-7741) |
|
Immediately | $ 7.04 | ||||
| 5 | WP112432 | Nut (no.10-32) (Replaces: 25-0027) |
|
$ 7.16 | |||||
| 5 | 25-6124 | Nut |
|
- | |||||
| 5 | 25-3123 | Washer, Cup |
|
- | |||||
| 5 | 25-3122 | Washer, Flat |
|
- | |||||
| 5 | 53-0166 | Terminal Block |
|
- | |||||
| 5 | WP3400074 | Screw (Replaces: 25-7803) |
|
$ 6.47 |
