SELECT A DIAGRAM

01 - Body


02 - Control Panel

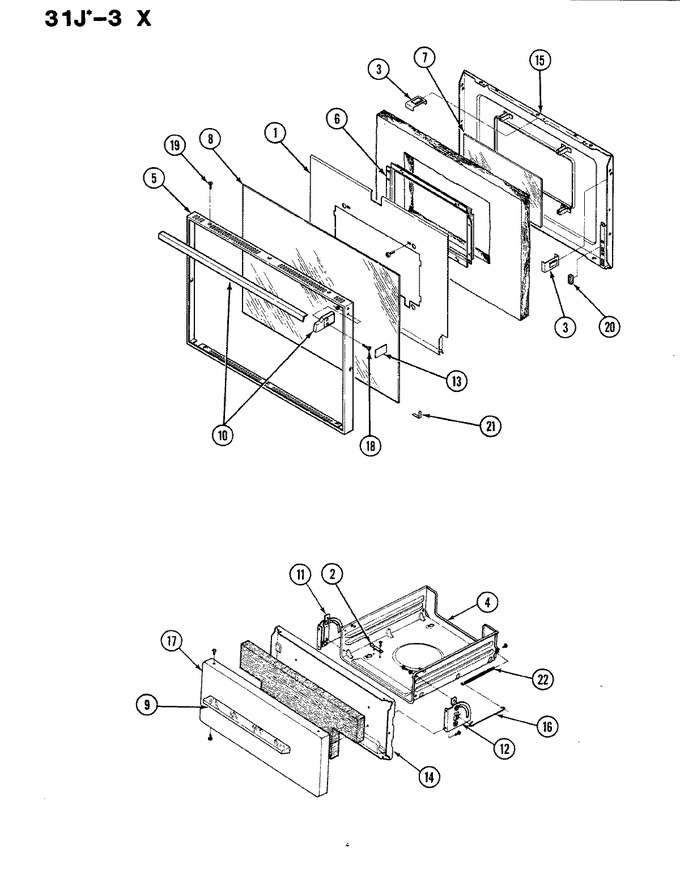

03 - Door


04 - Top Assy./control System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
1	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	01		Immediately	$ 6.85
1	3601F094-51		Baffle, Oven Door	01	Appelez-nous	-
2	8002P001-60		Catch	01	Appelez-nous	-
3	7112P034-60		Clip, Door	01	Appelez-nous	-
4	3407W009-19		Broiler Drawer Assy.	24	Appelez-nous	-
4	3407W009-23		Drawer, Broiler	01	Appelez-nous	-
5	7706P243-60		Frame, Door	01	Appelez-nous	-
6	3603F013-80		Frame, Window----na	01	Appelez-nous	-
7	7902P035-60		Glass, Door Inner	01	Appelez-nous	-
8	7902P274-60		Glass, Door	01	Appelez-nous	-
9	7701P012-60		Handle, Drawer (chr)	01	Appelez-nous	-
9	7701P047-60		Handle, Door	01	Appelez-nous	-
9	7701P030-60		Handle, Door (chr)	01	Appelez-nous	-
10	7701P047-60		Handle, Door	01	Appelez-nous	-
11	3418A063-34		Hinge, Broiler (lt)	01	Appelez-nous	-
12	3418A062-34		Hinge, Broiler (rt)	01	Appelez-nous	-
13	7728P012-60		Insert, Oven Door Handle	01	Appelez-nous	-
14	2404F021-19		Lining, Broiler Drawer	24	Appelez-nous	-
14	2404F021-23		Lining, Broiler	01	Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
15	2402W154-19		Lining, Oven Door	24	Appelez-nous	-
15	2402W091-23		Lining Assy, Ov Dr	01	Appelez-nous	-
16	7807P001-60		Link, Broiler	01	Appelez-nous	-
17	74002481		Screw, Handle   (Replaces: 7101P283-60)	01			$ 5.82
17	2416F025-74		Panel, Drawer (alm)	01	Appelez-nous	-
18	7101P123-60		Screw	01	Appelez-nous	-
19	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	01		Immediately	$ 6.85
20	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	01			$ 11.95
21	8010P045-60		Spacer, Glass Corner	01	Appelez-nous	-
22	7803P014-60		Spring	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
