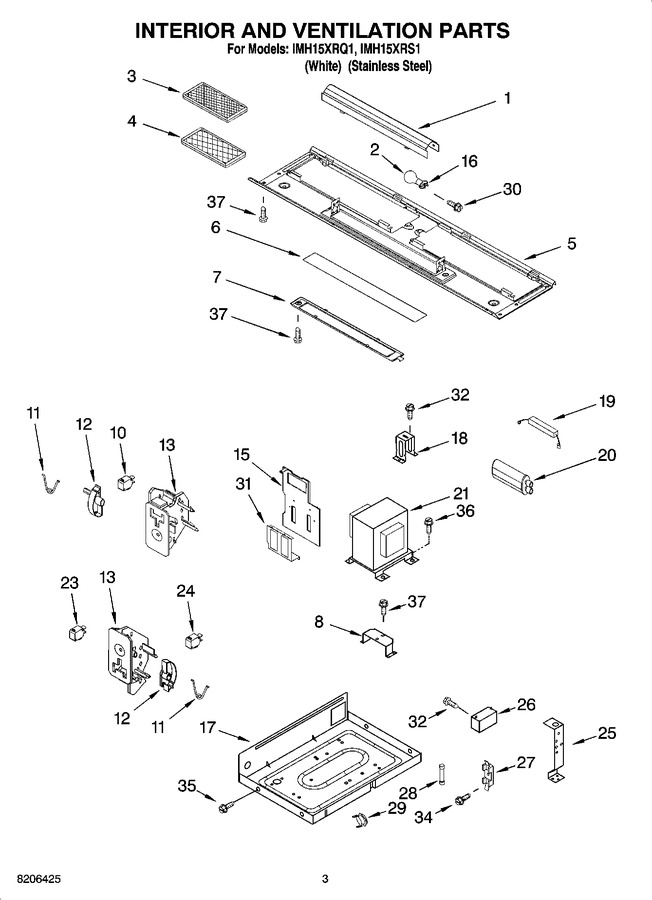

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4393688		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp (2)   (Replaces: 8204855)			Immediately	$ 6.61
3	8206444A		Filter, Charcoal   (Replaces: 8184958)				$ 21.19
4	6802A		Filter, Grease   (Replaces: 4393790)			Immediately	$ 28.96
5	8184307		Plate, Bottom		Appelez-nous	-
6	8169564		Glass, Lamp				$ 31.64
7	8184308		Holder, Glass		Appelez-nous	-
8	8205578		Tco, Bracket Assembly		Appelez-nous	-
10	W10211972		Switch, Micro   (Replaces: 4393697)			Immediately	$ 47.16
11	8169438		Spring, Interlock (2)				$ 10.69
12	8183824		Plate, Cam (2)				$ 5.70
13	8205572		Support, Interlock (2)   (Replaces: 4393595)				$ 6.26
15	8205580		Air Guide, Cooling		Appelez-nous	-
16	8169539		Socket, Light				$ 54.43
17	8185104		Chassis		Appelez-nous	-
18	8185102		Holder, Capacitor		Appelez-nous	-
19	W11256462		Diode, H.v.   (Replaces: 8205361)			Immediately	$ 29.88
20	W10850446		Capacitor, H.v.   (Replaces: 8169501)				$ 167.89
21	8205560		Transformer, H.v.		Appelez-nous	-
23	W10269458		Switch, Micro   (Replaces: 4393598)			Immediately	$ 36.10
24	W10211974		Switch, Micro   (Replaces: 4393599)			Immediately	$ 54.40
25	8205559		Bracket, Right		Appelez-nous	-
26	8184091		Capacitor		Appelez-nous	-
27	8184312		Holder, Fuse		Appelez-nous	-
28	W11707984		Fuse   (Replaces: 4393308)			Immediately	$ 41.27
29	4393710		Thermostat		Appelez-nous	-
30	8169474		Screw				$ 8.51
31	8205581		Block, Air Guide Magnetron		Appelez-nous	-
32	4393472		Screw		Appelez-nous	-
34	8169478		Screw		Appelez-nous	-
35	8169479		Screw				$ 6.26
36	4393836		Screw		Appelez-nous	-
37	4393839		Screw		Appelez-nous	-
