SELECT A DIAGRAM

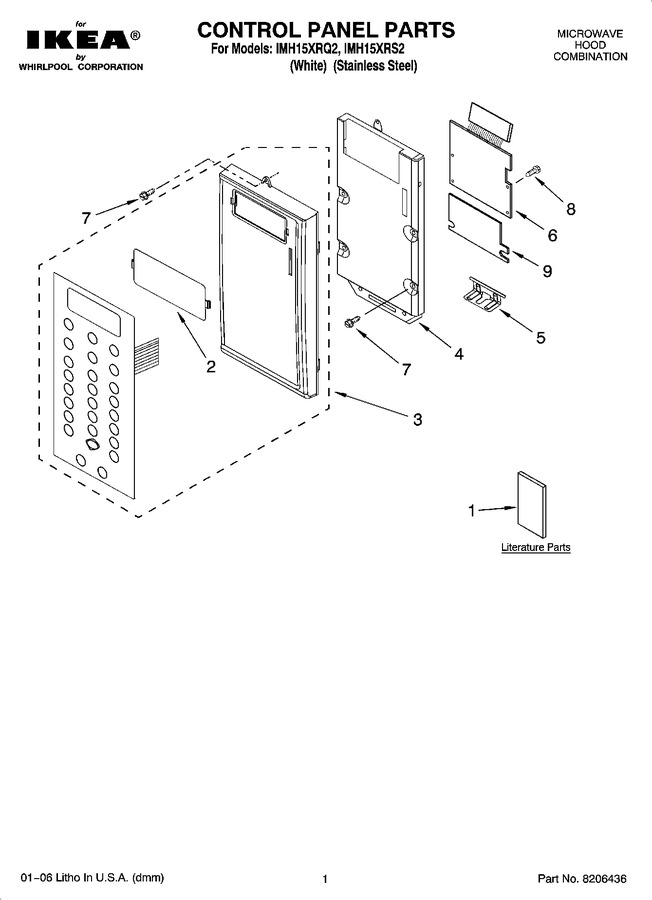

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205958		Use & Care Guide		Appelez-nous	-
1	8184732		Installation Instructions		Appelez-nous	-
1	8205344		Tech Sheet Cook Guide Label		Appelez-nous	-
1	8205342		English		Appelez-nous	-
1	8205343		French		Appelez-nous	-
2	4393739		Lens		Appelez-nous	-
3	8205564		Panel, Control (white)		Appelez-nous	-
3	8205567		Panel, Control (stainless Steel)		Appelez-nous	-
4	8183821		Bracket, Control		Appelez-nous	-
5	4393744		Plate, Hinge		Appelez-nous	-
6	8205565		Pcb Assembly		Appelez-nous	-
7	4393828		Screw		Appelez-nous	-
8	4393346		Screw		Appelez-nous	-
9	8185122		Foil, Pcb		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
