Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8206340 Deflector, Air Special Order $ 146.24

2 8206382 Cover, Lamp Special Order $ 7.87

7 8206232A Lamp   (Replaces: 4393681) In-Stock Immediately $ 6.61

8 8206371 Cover, Side Inlet Appelez-nous -
9 W10113981 Motor, Fan Assy Appelez-nous -
10 W10107800 Shield Appelez-nous -
11 W10138797 Air Guide   (Replaces: 8206377) Special Order $ 81.60

12 8206230A Filter, Charcoal   (Replaces: 8206230) In-Stock Immediately $ 17.33

13 W10110862 Mounting, Nut (2) Appelez-nous -
14 8206625 Channel, Air Appelez-nous -
16 8206384 Air Guide Appelez-nous -
18 8206624 Filter Special Order $ 38.80

19 8169539 Holder, Lamp Special Order $ 54.43

20 8206383 Base Plate, Air Guide Appelez-nous -
21 8206368 Brkt-mntg, Filter Appelez-nous -
24 8185097 Socket, Motor Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

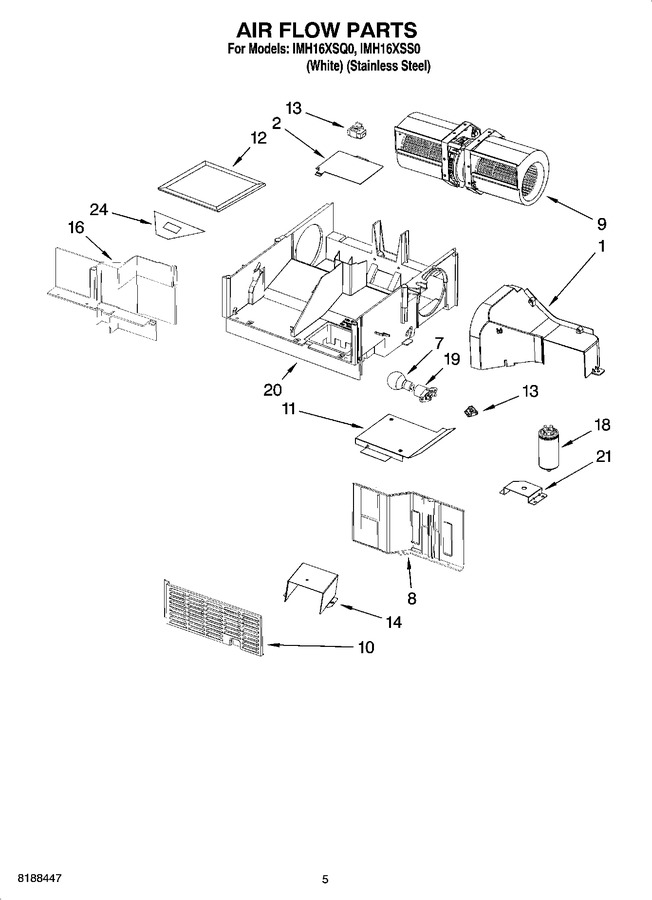

Diagram for IMH16XSQ0
