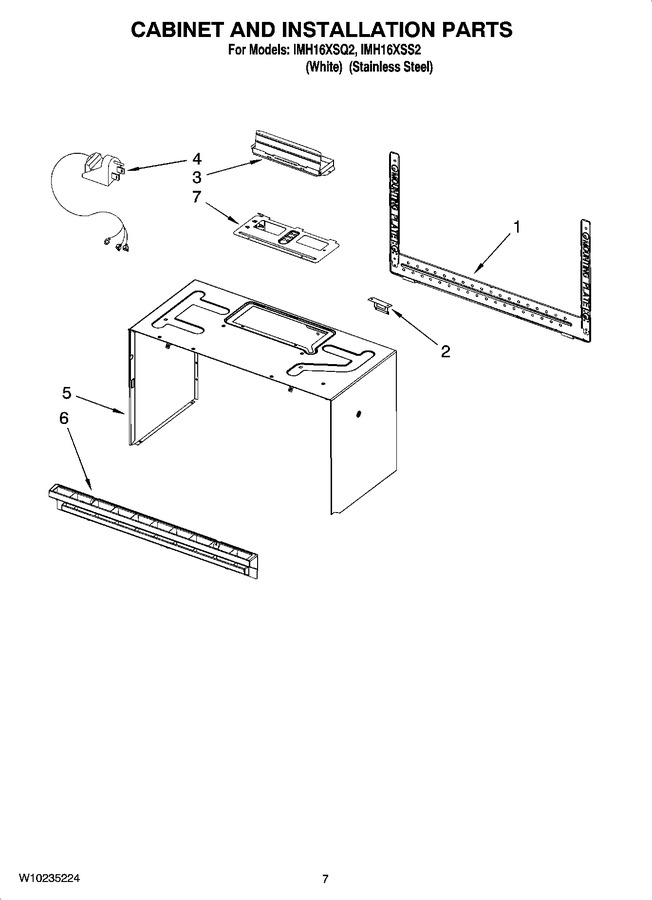

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10269225 | Plate, Mounting (Replaces: 8206315) |
|
$ 69.20 | |||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | 8206388 | Cord, Power |
|
$ 78.08 | |||||
| 5 | W10163417 | Case, Outer (white) |
|
- | |||||
| 5 | W10163418 | Case, Outer (black) |
|
$ 131.83 | |||||
| 6 | W10111339 | Grille, Vent (white Model) |
|
- | |||||
| 6 | W10111340 | Grille, Vent (stainless Model) |
|
- | |||||
| 7 | W10157207 | Plate, Damper |
|
- | |||||
| W10470168 | Harness Wire, Ntc (Replaces: W10163439) |
|
$ 36.63 | ||||||
| 8205948 | Installation, Hardware |
|
$ 23.06 | ||||||
| 8206002 | Template, Upper |
|
$ 6.99 | ||||||
| WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | |||||
| W10163434 | Main Harness |
|
- | ||||||
| W10163438 | Ground Wire Assy |
|
- | ||||||
| 8206415 | H.v. Wire Assy |
|
$ 39.87 | ||||||
| W10107760 | Grnd Wire, Filter |
|
- | ||||||
| W10163435 | Hdlmp/tt Wire Assy |
|
- | ||||||
| W10539842 | Hv Trnsfmr Wr Assy (Replaces: W10163436) |
|
$ 14.31 |
