SELECT A DIAGRAM

01 - Control Panel Parts


02 - Door Parts

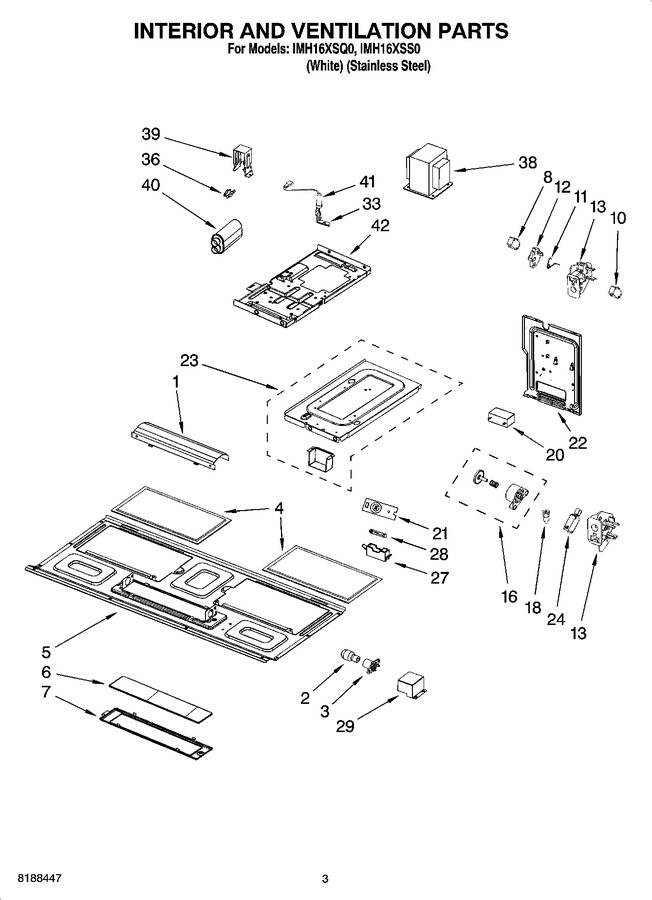

03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206387		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp   (Replaces: 8206232)			Immediately	$ 6.61
3	8206374		Holder, Lamp		Appelez-nous	-
4	8206229A		Filter, Grease   (Replaces: 8206229)			Immediately	$ 16.75
5	8206386		Plate, Bottom		Appelez-nous	-
6	8206376		Glass, Lamp		Appelez-nous	-
7	8206375		Holder, Glass		Appelez-nous	-
8	W10211972		Switch, Micro V5p010cg3   (Replaces: 8206345)			Immediately	$ 47.16
10	W10269458		Switch, Micro V5p020cg3   (Replaces: 8206347)			Immediately	$ 36.10
11	8169438		Spring, Interlock				$ 10.69
12	8183824		Plate, Cam				$ 5.70
13	WPW10156813		Support, Interlock (bottom)   (Replaces: 8206353)			Immediately	$ 7.26
13	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 20.13
16	W10197758		Piston Assembly   (Replaces: 8206558)			Immediately	$ 80.02
18	8206180		Screw				$ 11.55
20	W11405832		Capacitor, 125 V   (Replaces: 8206357)				$ 24.52
21	8206421		Thermistor (pcba)				$ 64.88
22	8206348		Plate, Side		Appelez-nous	-
23	8206358		Chassis Assembly		Appelez-nous	-
24	W10211974		Switch, Micro V5p030cg3   (Replaces: 8206352)			Immediately	$ 54.40
27	8184312		Holder, Fuse		Appelez-nous	-
28	W11707984		Fuse   (Replaces: 4393308)			Immediately	$ 41.27
29	8206359		Terminal Cvr, Lamp		Appelez-nous	-
33	8206370		Support, Diode		Appelez-nous	-
36	W10269232		Thermostat   (Replaces: 8206379)				$ 63.67
38	8206343		Transformer, H.v.				$ 222.85
39	W10532063		Bracket, Capacitor   (Replaces: 8206378)				$ 25.45
40	8206562		Capacitor, H.v.			Immediately	$ 108.83
41	8206369		Diode, H.v.		Appelez-nous	-
42	8206344		Chassis		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
