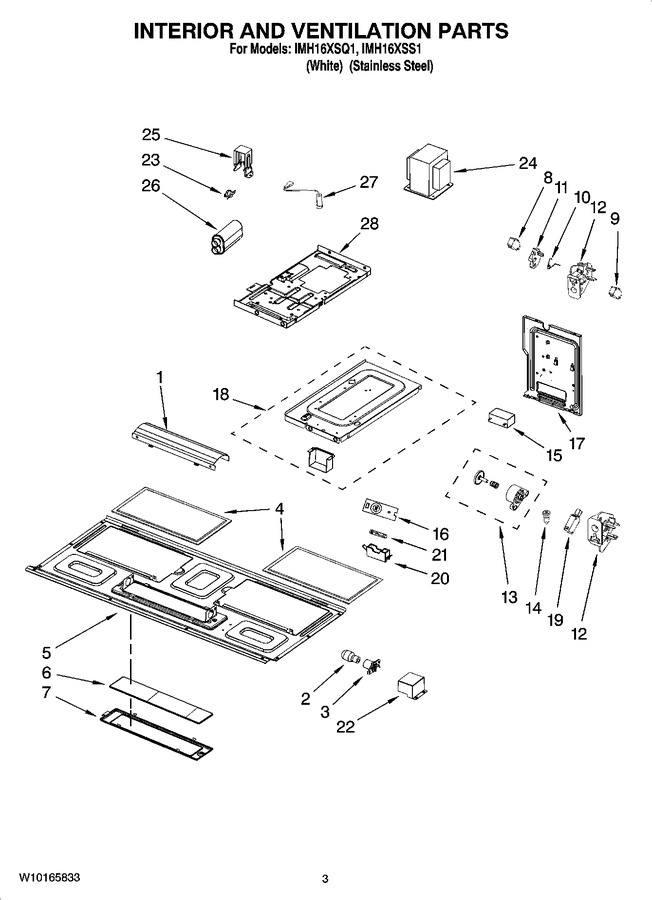

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206387		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp   (Replaces: 8206232)			Immediately	$ 6.61
3	8206374		Holder, Lamp		Appelez-nous	-
4	8206229A		Filter, Grease   (Replaces: 8206229)			Immediately	$ 16.75
5	8206386		Plate, Bottom		Appelez-nous	-
6	8206376		Glass, Lamp		Appelez-nous	-
7	8206375		Holder, Glass		Appelez-nous	-
8	W10211972		Switch, Micro V5p010cg3   (Replaces: 8206345)			Immediately	$ 47.16
9	W10269458		Switch, Micro V5p020cg3   (Replaces: 8206347)			Immediately	$ 36.10
10	W10156812		Spring, Interlock			Immediately	$ 10.93
11	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 16.05
12	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 7.26
12	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 20.13
13	W10197758		Piston Assembly   (Replaces: 8206558)			Immediately	$ 80.02
14	8206180		Screw				$ 11.55
15	W11405832		Capacitor, 125 V   (Replaces: 8206357)				$ 24.52
16	W10163422		Thermistor (pcba)				$ 154.03
17	W10163421		Plate, Side				$ 7.84
18	W10163423		Chassis Assembly		Appelez-nous	-
19	W10211974		Switch, Micro V5p030cg3   (Replaces: 8206352)			Immediately	$ 54.40
20	8184312		Holder, Fuse		Appelez-nous	-
21	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 41.27
22	8206359		Terminal Cvr, Lamp		Appelez-nous	-
23	W10269232		Thermostat   (Replaces: 8206379)				$ 63.67
24	W10165829		Transformer, H.v.		Appelez-nous	-
25	W10532063		Bracket, Capacitor   (Replaces: W10156817)				$ 25.45
26	8206562		Capacitor, H.v.			Immediately	$ 108.83
27	W11256462		Diode, H.v.   (Replaces: W10163432)			Immediately	$ 29.88
28	W10163420		Chassis		Appelez-nous	-
