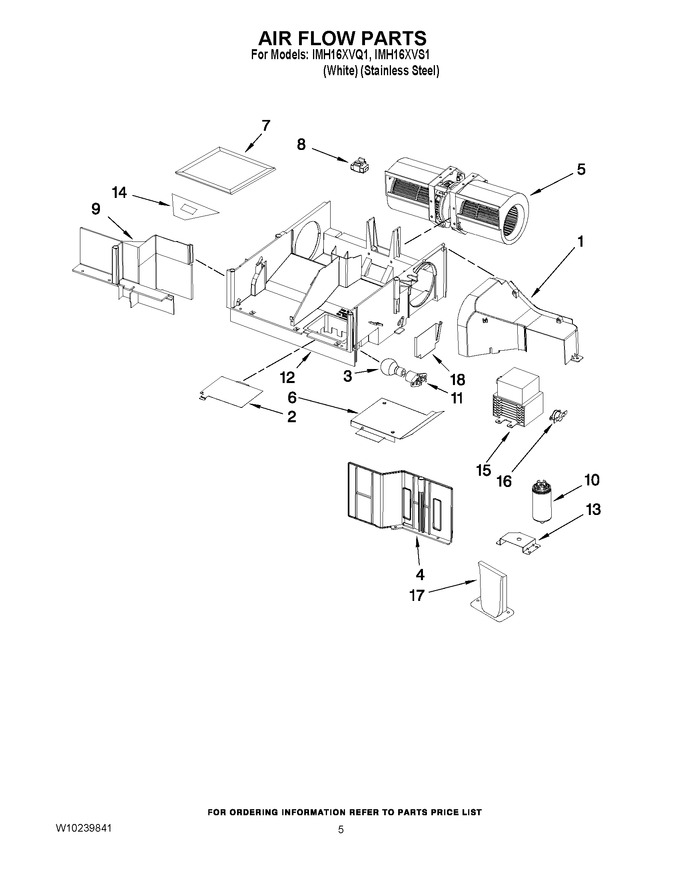

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206340 | Deflector, Air |
|
$ 146.24 | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | 8206232A | Lamp (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 4 | W10269231 | Cover, Side Inlet (Replaces: W10210869) |
|
$ 84.09 | |||||
| 5 | W10113981 | Motor, Fan Assy |
|
- | |||||
| 6 | W10138797 | Air Guide |
|
$ 81.60 | |||||
| 7 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 17.33 | ||||
| 8 | W10110862 | Mounting, Nut |
|
- | |||||
| 9 | W10138800 | Air Guide |
|
- | |||||
| 10 | 8206624 | Filter |
|
$ 38.80 | |||||
| 11 | WPW10210878 | Holder, Lamp (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 12 | W10210881 | Base Plate, Air Guide |
|
- | |||||
| 13 | W10156815 | Brkt-mntg, Filter |
|
$ 54.90 | |||||
| 14 | W10139750 | Socket, Motor Wire |
|
- | |||||
| 15 | W10754299 | Magnetron (Replaces: W10216360) |
|
Immediately | $ 208.09 | ||||
| 16 | W10598693 | Thermstat (Replaces: 8206342) |
|
$ 55.94 | |||||
| 17 | W10164716 | Plate, Water Proof |
|
$ 30.03 | |||||
| 18 | W10210884 | Cover, Right Duct |
|
- |
