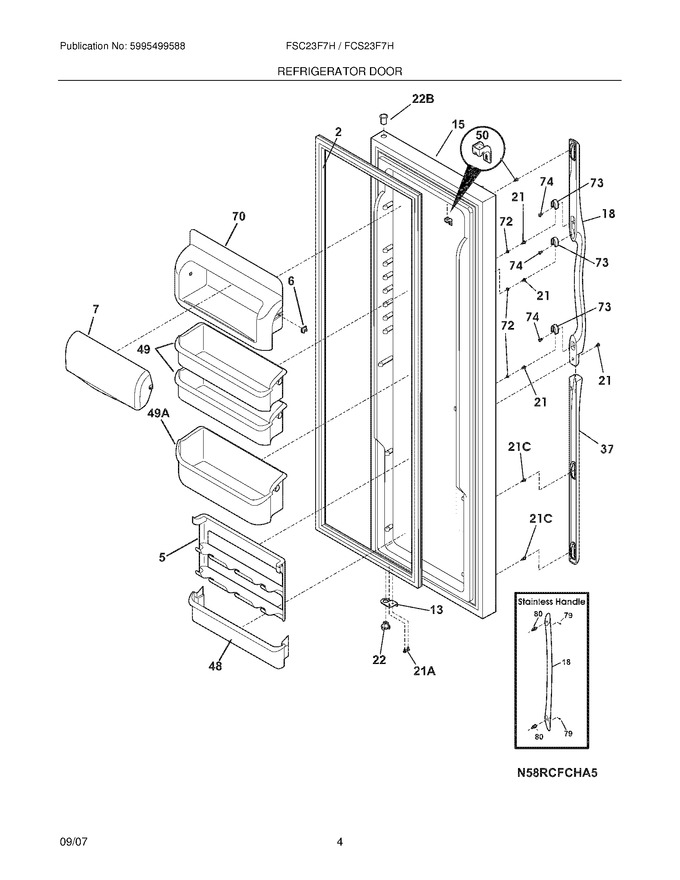

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
13	240581901		Door Stop,white ,refr				$ 43.95
15	241534504		Door-refr,white ,complete Assy				$ 315.99
18	241711701		Handle-door,white ,refr		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	241711601		Trim-handle,30.13`` ,white ,lower		Appelez-nous	-
48	241511701		Bin-door,ref			Immediately	$ 67.21
49	241505301		Bin-door,2-liter			Immediately	$ 76.40
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503204		Screw,cr Pan Hd ,10-16				$ 14.96
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21C	240521304		Screw,no.8-18 X 3/4				$ 11.08
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
49A	241505501		Bin-door,gallon			Immediately	$ 99.03
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
F49A	241780001		Liner,bin ,gallon				$ 63.74
NI	241779901		Liner,bin ,2 Liter				$ 33.84
