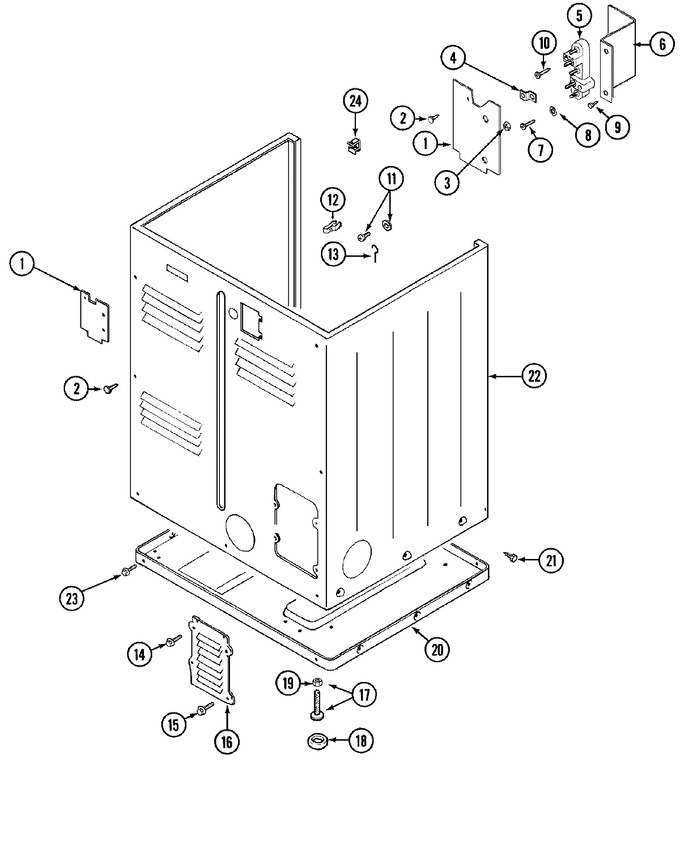

01 - Cabinet (front)
02 - Cabinet (rear)
03 - Control Panel
04 - Door
05 - Ducting
06 - Heater
07 - Motor Drive
08 - Tumbler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y312905 | Cover, Terminal | 13 |
|
- | ||||
| 2 | Y313561 | Screw----na | 13 |
|
$ 5.27 | ||||
| 3 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 13 |
|
$ 7.16 | ||||
| 4 | Y312184 | Strap, Ground | 13 |
|
- | ||||
| 5 | 400008 | Block, Terminal | 13 |
|
$ 29.20 | ||||
| 6 | Y312904 | Bracket, Terminal Block | 13 |
|
- | ||||
| 7 | W11164114 | Screw, No.10-24 X 3/4 Inch (Replaces: Y312209) | 13 |
|
$ 3.76 | ||||
| 8 | Y311270 | Washer, Terminal Block | 13 |
|
$ 8.75 | ||||
| 9 | Y310632 | Screw | 13 |
|
- | ||||
| 10 | W10850756 | Screw----na (Replaces: 33001245) | 13 |
|
$ 6.98 | ||||
| 11 | W10850756 | Screw & Washer Assy. (Replaces: 303846) | 13 |
|
$ 6.98 | ||||
| 12 | 301548 | Clamp, Ground (w/screw) | 13 |
|
- | ||||
| 13 | 204807 | Grnd.wire,supp.plte To Top Cvr | 13 |
|
- | ||||
| 14 | WP90767 | Screw (Replaces: Y313559) | 13 |
|
Immediately | $ 7.04 | |||
| 15 | WP90767 | Screw (Replaces: 211294) | 13 |
|
Immediately | $ 7.04 | |||
| 16 | Y312951 | Cover, Access | 13 |
|
- | ||||
| 17 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 13 |
|
$ 7.16 | ||||
| 18 | Y314137 | Foot, Rubber | 13 |
|
$ 14.08 | ||||
| 19 | WP62739 | Nut (Replaces: Y052740) | 13 |
|
$ 6.85 | ||||
| 20 | Y303361 | Base Assy. | 13 |
|
- | ||||
| 21 | 213007 | Screw, Cabinet | 13 |
|
$ 10.99 | ||||
| 22 | 33001159 | Cabinet (wht) | 13 |
|
- | ||||
| 23 | Y313561 | Screw----na | 13 |
|
$ 5.27 | ||||
| 23 | Y310632 | Screw | 13 |
|
- |
