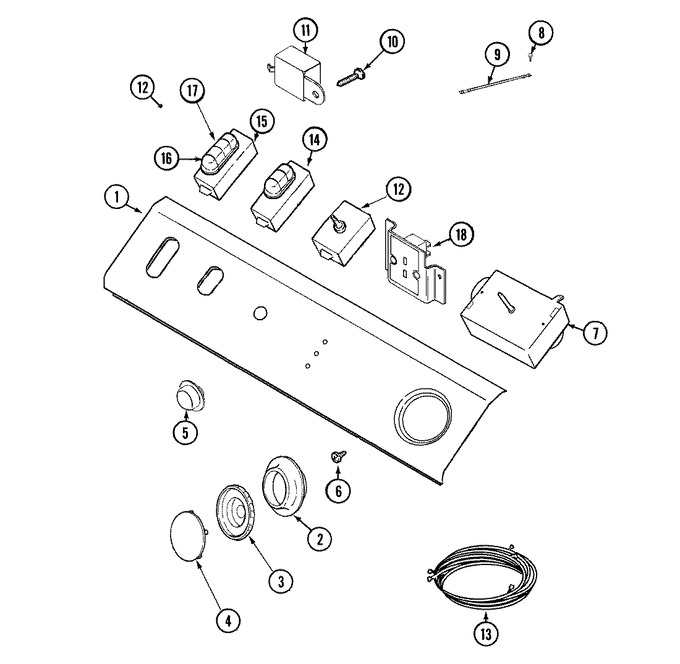

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33001606 | Panel, Control (wht) | 10 |
|
- | ||||
| 1 | 22001662 | Screw | 10 |
|
- | ||||
| 2 | WP33001621 | Skirt, Timer Dial (wht) (Replaces: 33001621) | 10 |
|
Immediately | $ 23.18 | |||
| 3 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
$ 26.38 | ||||
| 4 | WP22001664 | Timer Knob Insert/cap (wht) (Replaces: 22001664) | 10 |
|
$ 7.85 | ||||
| 5 | 33001619 | Button, Push To Start (wht) | 10 |
|
- | ||||
| 6 | WP90767 | Screw, Timer (Replaces: 33001690) | 10 |
|
Immediately | $ 7.04 | |||
| 7 | WP33001730 | Timer (Replaces: 33001730) | 11 |
|
Immediately | $ 329.07 | |||
| 7 | 33001635 | Timer Rpr | 10 |
|
- | ||||
| 8 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 10 |
|
$ 9.79 | ||||
| 9 | 22001654 | Wire, Ground | 10 |
|
- | ||||
| 10 | WP489128 | Screw (Replaces: 216423) | 10 |
|
$ 9.79 | ||||
| 11 | 33001660 | Signal, End Of Cycle | 10 |
|
- | ||||
| 11 | 33001848 | Signal, End Of Cycle (chime) | 15 |
|
- | ||||
| 12 | 33001726 | Switch, Push To Start (wht) | 10 |
|
- | ||||
| 13 | 33001732 | Wire Harness, Main | 11 |
|
- | ||||
| 13 | 33001675 | Wire Harness, Main | 10 |
|
- | ||||
| 13 | 33001850 | Wire Harness, Main | 15 |
|
- | ||||
| 14 | 33001656 | Switch, Temp (elec)(wht) | 10 |
|
$ 122.64 | ||||
| 15 | 22001906 | Switch, Option (4 Pos.-wht) | 10 |
|
- | ||||
| 16 | 22001788 | Button, Switch (wht-end) | 10 |
|
- | ||||
| 17 | 22001789 | Button, Switch (wht-mdl) | 10 |
|
- | ||||
| 18 | 33001661 | Display, Dryness (wht) | 10 |
|
- | ||||
| 19 | 33001684 | Manual, Use & Care (french) | 10 |
|
- |
