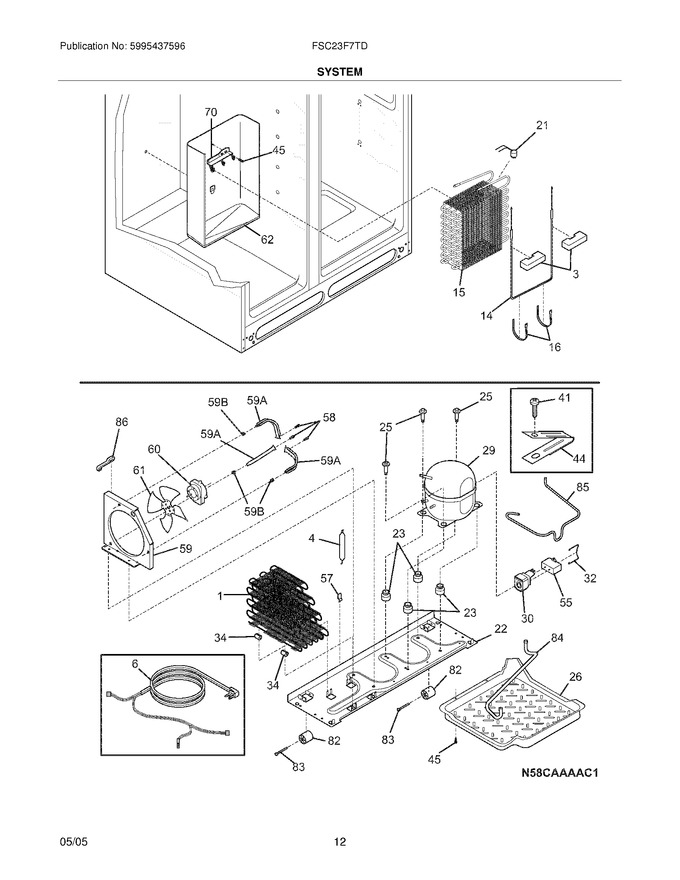

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526057		Condenser   (Replaces: 240333603)				$ 153.20
3	218679614		Block-evap Coil,styrofoam ,(2)   (Replaces: 218679607)				$ 19.85
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
21	5303918214		Thermostat-defrost,kit			Immediately	$ 33.42
22	240330008		Base-compressor Mtg		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	240491501		Screw-compressor Mtg,1/4-28 X 1.16 ,shoulder,typ Cf		Appelez-nous	-
26	241697502		Pan-defrost Drain   (Replaces: 241637301)				$ 156.92
29	5303918314		Compressor,w/ Electricals		Appelez-nous	-
30	297237702		Starter-tsd   (Replaces: 241527803)				$ 105.86
32	241527901		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	240555001		Screw-no.8-32 X 3/8		Appelez-nous	-
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
55	297286803		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909915)			Immediately	$ 28.77
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	241953902		Screw,hex Washer Head ,8-18 X 0.375   (Replaces: 240433201)			Immediately	$ 17.11
59	241946105		Shroud-cond Fan   (Replaces: 240315502)				$ 26.23
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
62	5304481642		Trough-drain   (Replaces: 240429402)				$ 327.07
70	218990801		Bracket-evap/cvr Mtg				$ 63.79
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
84	241957901		Tube-drain,lower   (Replaces: 5304421068)				$ 60.96
85	241856901		Tube-connector,suction   (Replaces: 240553501)				$ 78.11
86	240409302		Spacer-cond Tube,black				$ 67.49
59A	240346501		Bracket-support,cond Mtr ,(3)				$ 21.97
59B	240346601		Grommet-bracket,(3)				$ 19.24
F14	242044113		Heater-defrost   (Replaces: 240316107)			Immediately	$ 103.72
F15	5303918284		Evaporator Kit				$ 481.01
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F6	241516904		Cord-service   (Replaces: 241516901)			Immediately	$ 38.68
F60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 141.66
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	241635601		Harness-wiring,machine Compt		Appelez-nous	-
NI	241519901		Harness-wiring				$ 100.84
NI	241510802		Harness-wiring   (Replaces: 241510801)				$ 41.81
NI	240346701		Tape-foam Seal,shroud				$ 29.77
NI	240359401		Screw-fan Shroud,(2)		Appelez-nous	-
NI	5303918300		Heat Exchanger Kit,suction Line				$ 288.45
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
