SELECT A DIAGRAM

01 - Control Panel


02 - Front Panel & Door Assembly


03 - Front View


04 - Inlet Duct & Heater Assembly


05 - Inlet Duct & Heater Assembly (series A3)


06 - Installation Accessories


07 - Lint Screen, Tumbler (front & Back)


08 - Motor, Blower, Base Frame & Thermostats


09 - Rear View


10 - Thermostats

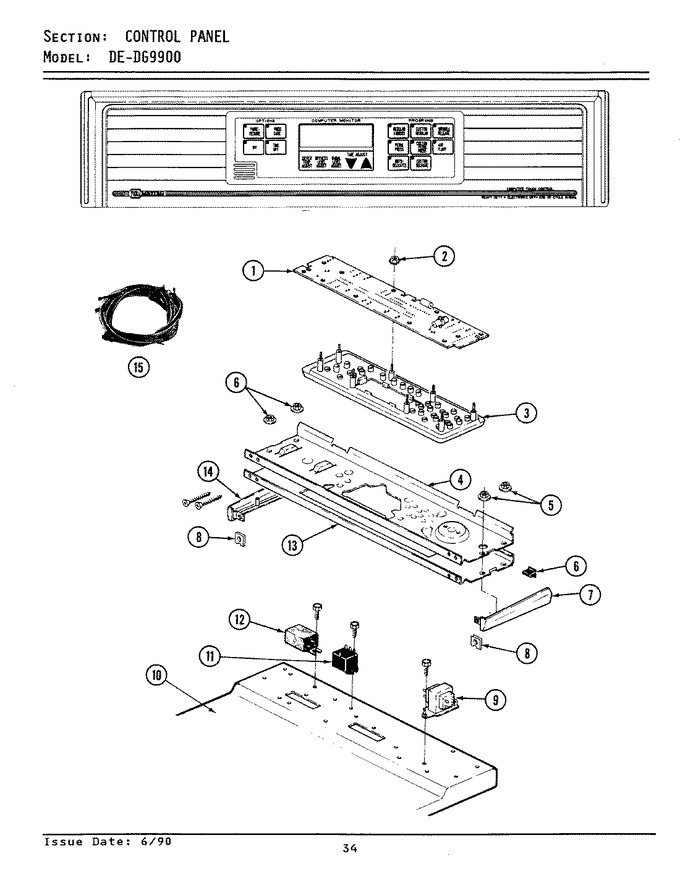

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307218		Circuit Board Assy	00	Appelez-nous	-
2	M0282005		Locknut   (Replaces: 912077)	00			$ 7.07
3	307214		Mounting Panel Assy	00	Appelez-nous	-
4	315028		Backup Plate	00	Appelez-nous	-
5	214872		Palnut, End Cap	00	Appelez-nous	-
6	214897		Pad, Control Panel	00	Appelez-nous	-
7	207216		End Cap Rh	00	Appelez-nous	-
7	210932		Screw, No.8 X 9/16 Ctsk	00	Appelez-nous	-
8	214894		Fastener, End Cap	00	Appelez-nous	-
9	WP90767		Screw   (Replaces: Y313559)	00		Immediately	$ 7.04
9	207766		Transformer	00	Appelez-nous	-
9	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
10	307104L		Top Cover Assy	00	Appelez-nous	-
11	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
11	206824		Relay, Spst 24vdc	00	Appelez-nous	-
12	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
12	306199		Relay, Heater	00			$ 42.40
13	307215		Control Panel	00	Appelez-nous	-
14	207215		End Cap Lh	00	Appelez-nous	-
15	307210		Wire Harness	00	Appelez-nous	-
15	307201		Wire Harness	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
