Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8206174 Plate, Mounting   (Replaces: 8205400) Special Order $ 30.99

3 W10843943 Door, Damper   (Replaces: 4393713) In-Stock Immediately $ 65.74

5 W10843943 Damper Assembly   (Replaces: 8205558) In-Stock Immediately $ 65.74

6 W10708076 Cord, Power   (Replaces: 8205808) Special Order $ 18.48

7 8185093 Case, Outer Appelez-nous -
8 8184608 Grille, Vent In-Stock Immediately $ 62.40

9 8206334 Grille, Holder   (Replaces: 4393795) Special Order $ 6.47

10 WP4393834 Screw   (Replaces: 4393834) Special Order $ 6.47

12 4393828 Screw Appelez-nous -
13 8169318 Rod Appelez-nous -
14 8169319 Latch, Pivot Appelez-nous -
15 8169320 E-ring Appelez-nous -
16 8185033 Catch Appelez-nous -
17 8169374 Spring Appelez-nous -
18 8185090 Cover, Motor Appelez-nous -
19 8185033 Catch Assembly Appelez-nous -
8169659 Installation, Hardware Appelez-nous -
8205632 Main Harness Appelez-nous -
8183743 Wall Template Appelez-nous -
8184731 Upper Template Appelez-nous -
WP8169704 Screw, Top Mountng   (Replaces: 8169704) In-Stock Immediately $ 10.07

8205635 Ground Wire Assy. Appelez-nous -
8205634 H.v. Wire Assy. Appelez-nous -
8205633 Lamp Wire Assy. Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

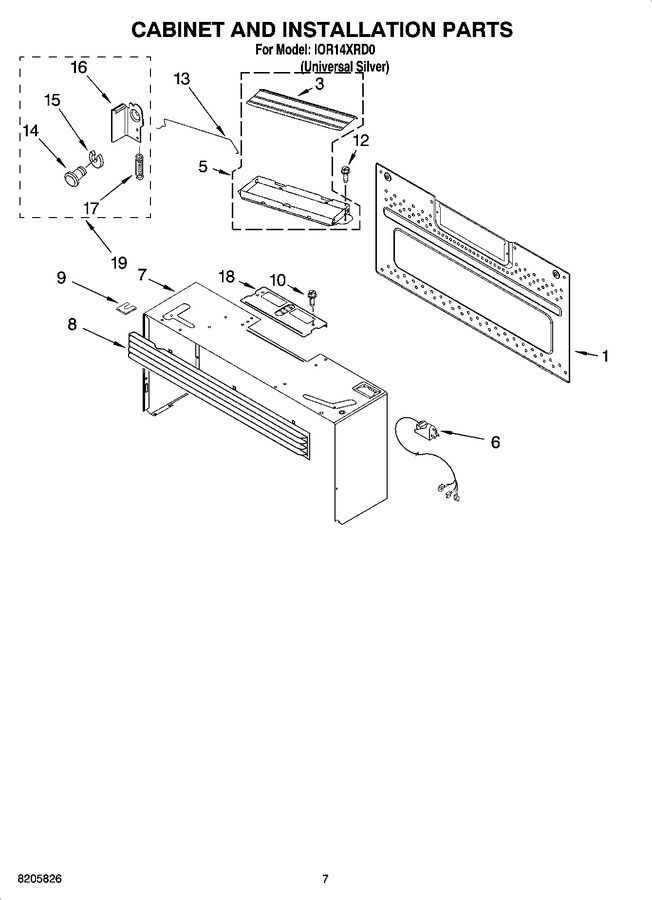

Diagram for IOR14XRD0
