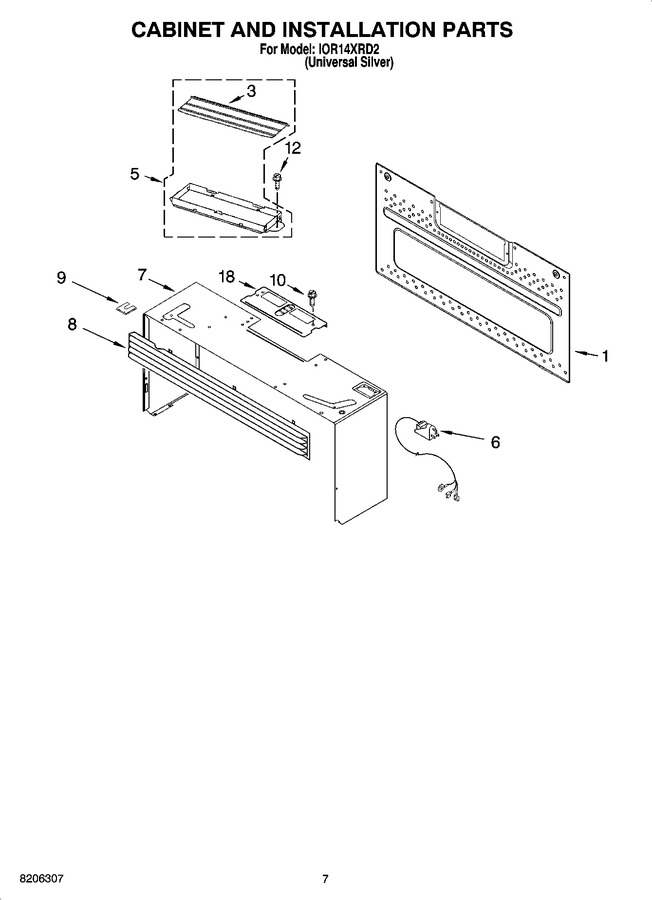

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8206174 | Plate, Mounting (Replaces: 8206174) |
|
$ 30.99 | |||||
| 3 | W10843943 | Door, Damper (Replaces: 4393713) |
|
Immediately | $ 65.74 | ||||
| 5 | W10843943 | Damper Assembly (Replaces: 8205558) |
|
Immediately | $ 65.74 | ||||
| 6 | W10708076 | Cord, Power (Replaces: 8205808) |
|
$ 18.48 | |||||
| 7 | 8185093 | Case, Outer |
|
- | |||||
| 8 | 8184608 | Grille, Vent |
|
Immediately | $ 62.40 | ||||
| 9 | 8206334 | Grille, Holder (Replaces: 4393795) |
|
$ 6.47 | |||||
| 10 | WP4393834 | Screw (Replaces: 4393834) |
|
$ 6.47 | |||||
| 12 | 4393828 | Screw |
|
- | |||||
| 18 | 8185090 | Cover, Motor |
|
- | |||||
| 8205635 | Ground Wire Assy. |
|
- | ||||||
| 8205634 | H.v. Wire Assy. |
|
- | ||||||
| 8205633 | Lamp Wire Assy. |
|
- | ||||||
| 8205632 | Main Harness |
|
- | ||||||
| 8184731 | Upper Template |
|
- | ||||||
| WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | |||||
| 8205948 | Installation, Hardware |
|
$ 23.06 |
