SELECT A DIAGRAM

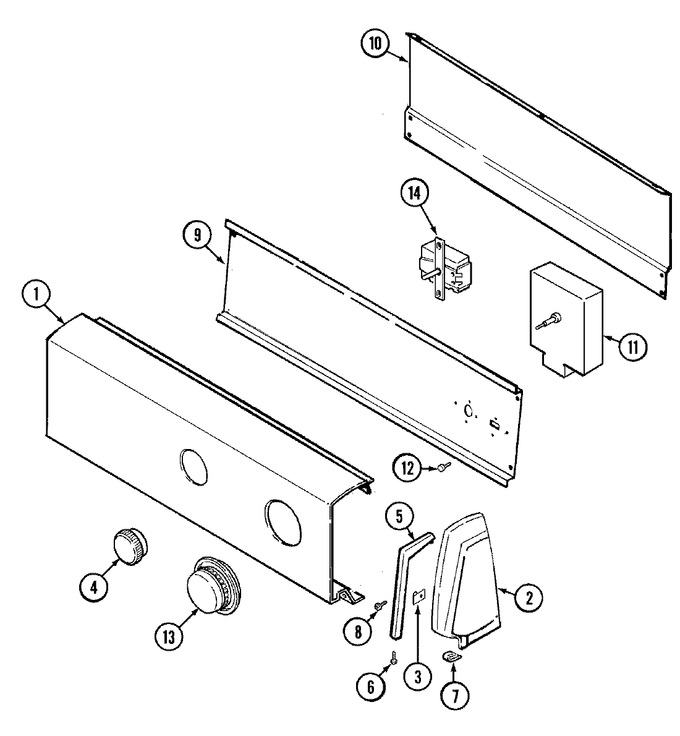

01 - Control Panel
02 - Heater
03 - Motor & Drive
04 - Tumbler
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-2558 | Panel, Control |
|
- | |||||
| 2 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 2 | 35-2488 | Cap, End (lt) |
|
- | |||||
| 2 | 35-2487 | Cap, End (rt) |
|
- | |||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 4 | 35-2185 | Knob, Selector (blk) |
|
- | |||||
| 5 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 5 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 6 | 25-7760 | Screw |
|
- | |||||
| 7 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 8 | 25-7649 | Screw |
|
- | |||||
| 9 | 53-1676 | Shield, Control |
|
- | |||||
| 9 | 53-2504 | Spacer, Control Shield |
|
- | |||||
| 10 | 35-2688 | Shield, Control Panel (rear) |
|
- | |||||
| 11 | 31001069 | Resistor Assy. | A |
|
- | ||||
| 11 | 31001069 | Resistor Assy. | 10 |
|
- | ||||
| 11 | 53-1812 | Timer |
|
- | |||||
| 12 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 13 | 53-1533 | Knob & Skirt Assy. |
|
- | |||||
| 14 | 53-0344 | Switch, Temperature |
|
- | |||||
| 14 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 15 | 31001008 | Manual, Use & Care |
|
- | |||||
| 15 | 31001030 | Manual, Use & Care |
|
- | |||||
| 16 | 16000329 | Guide, Quick Ref. - Magic Chef |
|
- |
