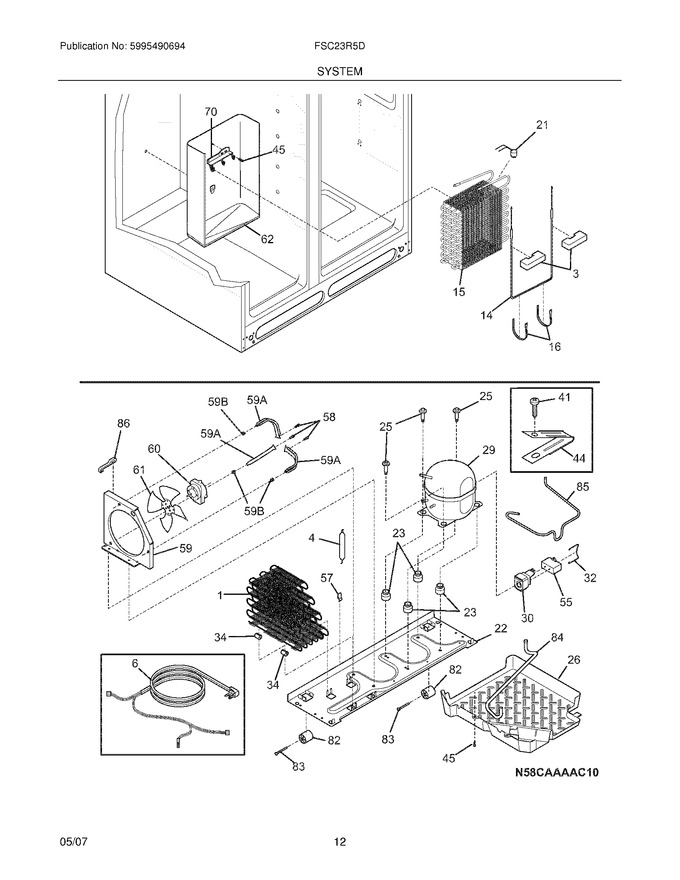

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526057		Condenser   (Replaces: 240333603)				$ 153.20
3	218679614		Block-evap Coil,styrofoam ,(2)   (Replaces: 218679607)				$ 19.85
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
21	5303918214		Thermostat-defrost,kit			Immediately	$ 33.42
22	240330011		Base-compressor Mtg				$ 158.01
23	218513300		Grommet,compressor   (Replaces: 241659701)				$ 42.53
25	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
26	241697502		Pan-defrost Drain   (Replaces: 241697501)				$ 156.92
29	5304475098		Compressor,kit ,w/electricals   (Replaces: 5303918324)				$ 496.13
32	241650901		Clamp,elec Cont Mtg ,compressor				$ 11.34
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
44	215174700		Clamp, Service Cord, Strain Relief		Appelez-nous	-
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,				$ 14.18
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	241953902		Screw,hex Washer Head ,8-18 X 3/8   (Replaces: 240433203)			Immediately	$ 17.11
59	241946105		Shroud-cond Fan   (Replaces: 240315502)				$ 26.23
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
62	5304481642		Trough-drain   (Replaces: 240429402)				$ 327.07
70	218990801		Bracket-evap/cvr Mtg				$ 63.79
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,			Immediately	$ 35.34
84	241957901		Tube-drain,lower   (Replaces: 5304421068)				$ 60.96
85	241856901		Tube-connector,suction   (Replaces: 241719501)				$ 78.11
86	240409302		Spacer-cond Tube,black				$ 67.49
59A	240346501		Bracket-support,cond Mtr ,(3)				$ 21.97
59B	240346601		Grommet-bracket,(3)				$ 19.24
F14	242044113		Heater-defrost   (Replaces: 240316107)			Immediately	$ 103.72
F15	5303918284		Evaporator Kit				$ 481.01
F30	241707712		Starter,ptc				$ 77.97
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F6	241516904		Cord-service   (Replaces: 241516901)			Immediately	$ 38.68
F60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 141.66
NI	5303918327		Heat Exchanger Kit,suction Line				$ 303.91
NI	241635603		Harness-wiring,machine Compt				$ 202.52
NI	241519902		Harness-wiring				$ 83.84
NI	241510802		Harness-wiring   (Replaces: 241510801)				$ 41.81
NI	240346701		Tape-foam Seal,shroud				$ 29.77
NI	240359403		Screw-fan Shroud,(2)				$ 3.79
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
