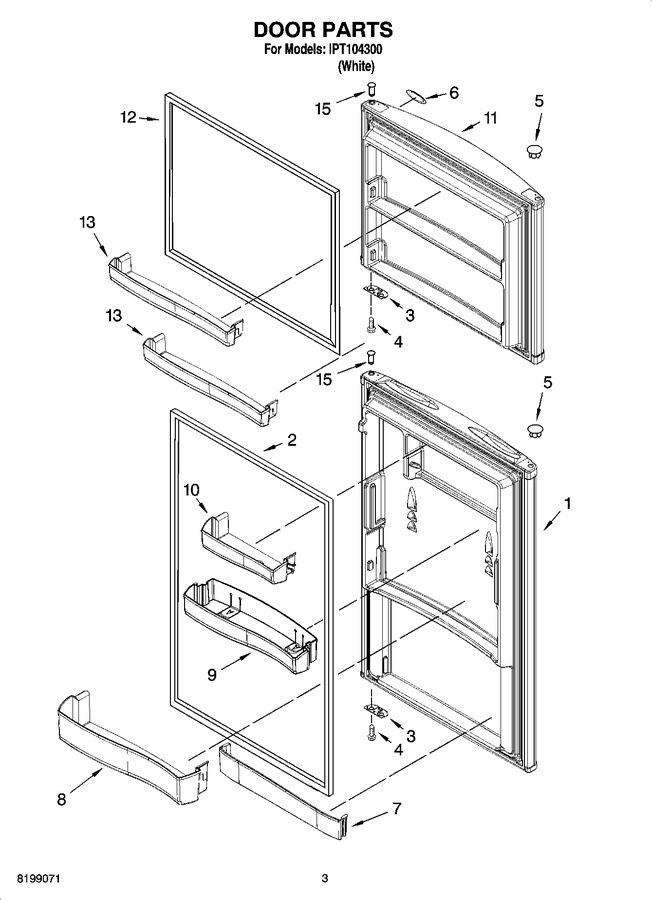

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2258537W | Refrigerator Door Also Includes 2) (white) |
|
- | |||||
| 2 | 2211227 | Gasket, Door (rc) (mist Beige) |
|
- | |||||
| 3 | 2211124 | Bracket, Door Stop |
|
- | |||||
| 4 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 5 | 2211250W | Hole Plug (white) |
|
- | |||||
| 6 | 2263431 | Nameplate |
|
$ 66.92 | |||||
| 7 | 2219052 | Trivet, Shelf (bottom) |
|
$ 17.48 | |||||
| 8 | 2256906 | Trivet, Shelf (middle) |
|
- | |||||
| 9 | 2256822 | Door Bin |
|
- | |||||
| 10 | 2256826 | Trivet, Shelf (top) |
|
- | |||||
| 11 | 2258554W | Freezer Door (includes Item 12) (white) |
|
$ 43.48 | |||||
| 12 | 2211147 | Gasket, Door (fc) (mist Beige) |
|
- | |||||
| 13 | 2256898 | Trivet, Shelf (fc) |
|
- | |||||
| 15 | 2210973 | Thimble |
|
- |
