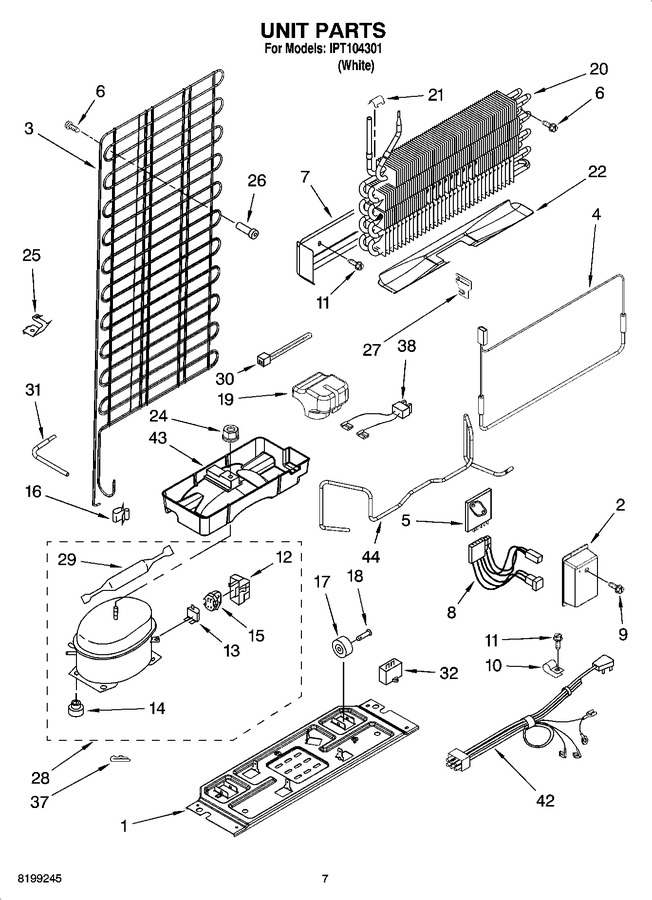

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2211011		Support Plate, Compressor		Appelez-nous	-
2	2219286		Cover, Adc		Appelez-nous	-
3	2252732		Condenser		Appelez-nous	-
4	WP2210895		Heater, Defrost   (Replaces: 2210895)				$ 140.47
5	4388932		Adaptive Defrost Control   (Replaces: 2303824)			Immediately	$ 240.38
6	8533892		Screw		Appelez-nous	-
7	2210879		Heat Shield		Appelez-nous	-
8	2258773		Wire Assembly, Adc		Appelez-nous	-
9	WP487353		Screw   (Replaces: 488693)				$ 6.81
10	WP308605		Clamp   (Replaces: 2219335)				$ 10.08
11	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
12	WP2162358		Cover ((service))   (Replaces: 4387731)				$ 81.68
12	WP2162358		Cover (production)   (Replaces: 2162358)				$ 81.68
13	WP4387938		Overload (service)   (Replaces: 4387938)				$ 170.21
13	4387535		Overload (production)   (Replaces: 2154760)				$ 163.76
14	WP4387558		Grommet (service)   (Replaces: 4387558)				$ 6.26
14	WP2163786		Grommet (production)   (Replaces: 2222084)				$ 7.16
15	WP2262181		Start Relay   (Replaces: 2262181)				$ 110.39
16	W10812038		Clip, Wire (compressor)   (Replaces: 939054)		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
18	W11594405		Axle, Rivet   (Replaces: 2262072)			Immediately	$ 16.39
19	2210813		Wedge, Evaporator		Appelez-nous	-
20	2211094		Evaporator Assy.				$ 200.46
21	9791833		Clip, Evaporator Tube		Appelez-nous	-
22	2265095		Drain Pan   (Replaces: 2210835)		Appelez-nous	-
24	285002		Hex Nut   (Replaces: 489153)				$ 11.02
25	4386951		Clip, Condenser Mounting   (Replaces: 2172892)		Appelez-nous	-
26	2258451		Bracket, Condenser		Appelez-nous	-
27	2211075		Bracket		Appelez-nous	-
28	W10823815		Compressor (includes Items 12,13,14 & 29)   (Replaces: 2256541)				$ 606.74
29	W10843121		Drier (production)   (Replaces: 2201796)			Immediately	$ 47.31
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 47.31
30	WPW10339879		Strap   (Replaces: 2263990)				$ 7.11
31	2219285		Tube, Process		Appelez-nous	-
32	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 52.97
37	24364001		Pin, Cotter		Appelez-nous	-
38	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 7.29
42	2258584		Wire Assy. Unit		Appelez-nous	-
43	2217957		Evaporator Tray		Appelez-nous	-
44	978028		Valve, Access (1/2)		Appelez-nous	-
44	978029		Valve Access (5/8``)				$ 93.85
44	978030		Valve, Access (3/4``)				$ 117.64
44	876764		Valve, Access(3/16``)			Immediately	$ 82.22
44	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
44	2262248		Tube, Discharge		Appelez-nous	-
44	978026		Valve, Access (5/16``)			Immediately	$ 115.28
44	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
